Articulab SARA — Socially-Aware Robot Assistant

Overview

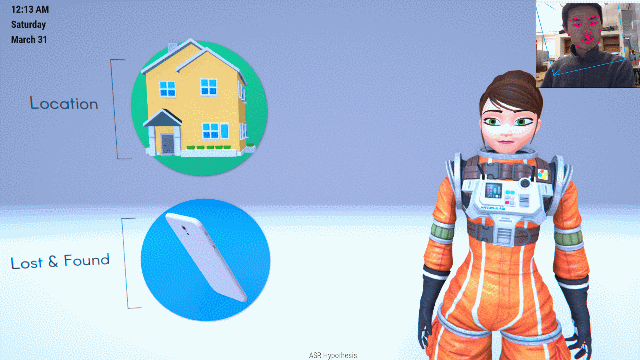

SARA (Socially-Aware Robot Assistant) is a virtual human AI agent that interacts with people in a whole new way — personalizing interaction and improving task performance by relying on information about the relationship between the human user and the assistant. Rather than replacing people, SARA is programmed to collaborate with her human users, depending on socio-emotional bonds to improve performance.

SARA always attends to two simultaneous goals:

Task goal — finding information, navigating a conference, teaching a subject
Social goal — ensuring interaction is comfortable, engaging, and builds closeness over time

SARA was showcased at:

World Economic Forum Annual Meeting — Davos, January 2017
World Economic Forum Annual Meeting of New Champions — Tianjin, China, June 2016

My Work

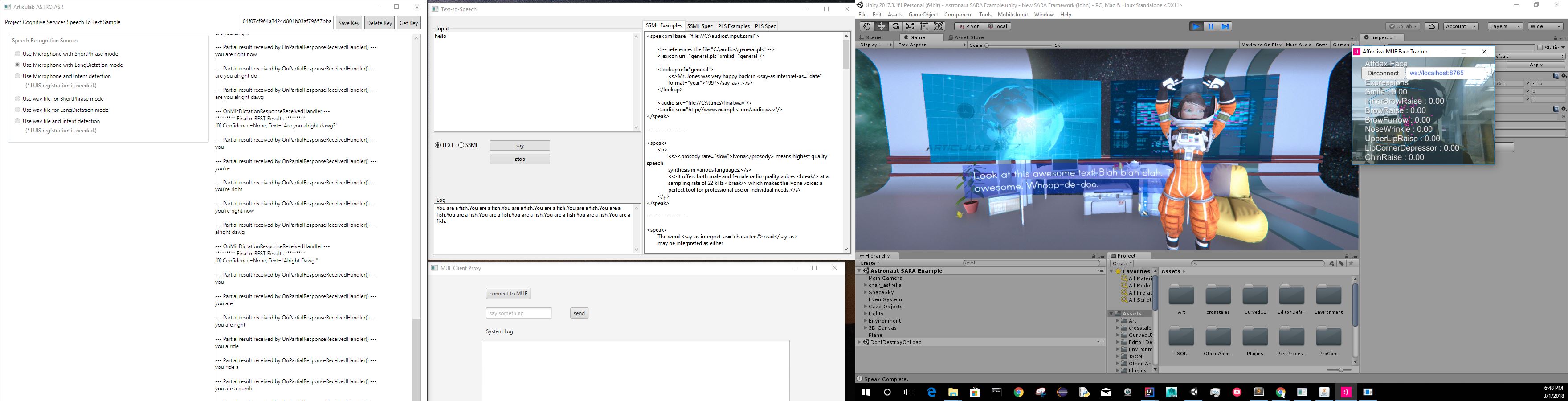

My work for the SARA Project was primarily focused on building a new SARA Unity Framework for Unity 2017 as a lightweight replacement to the older VHToolkit and Smartbody base frameworks.

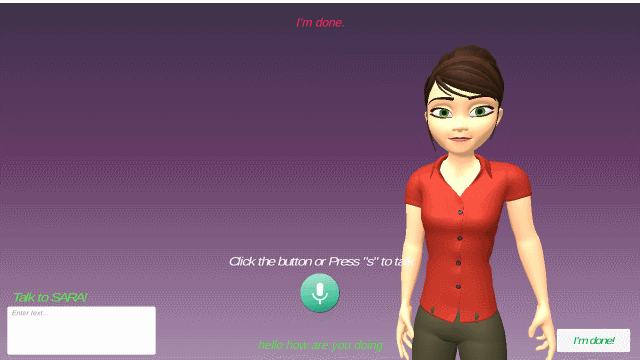

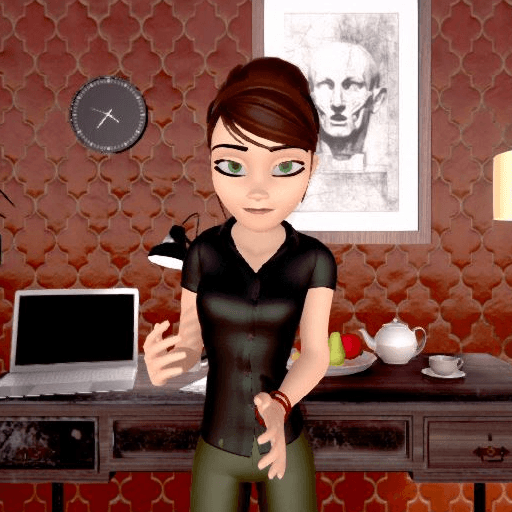

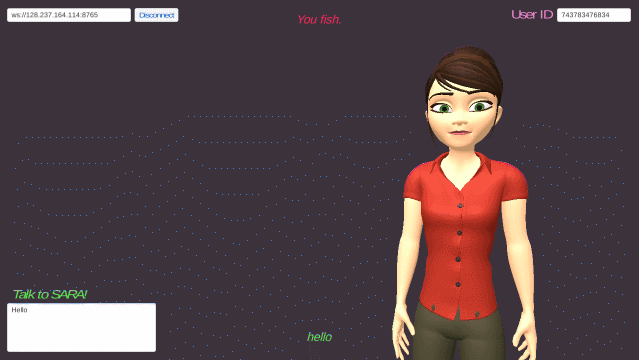

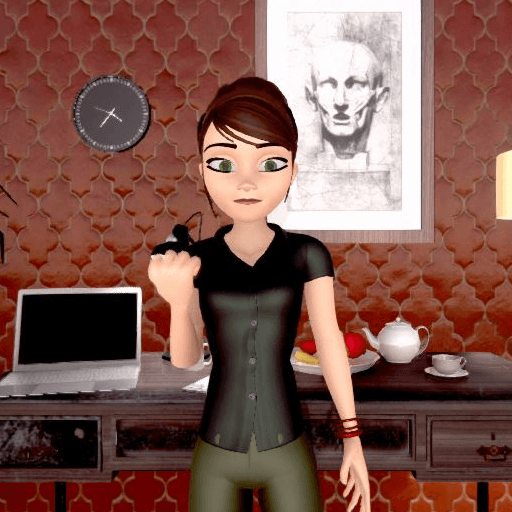

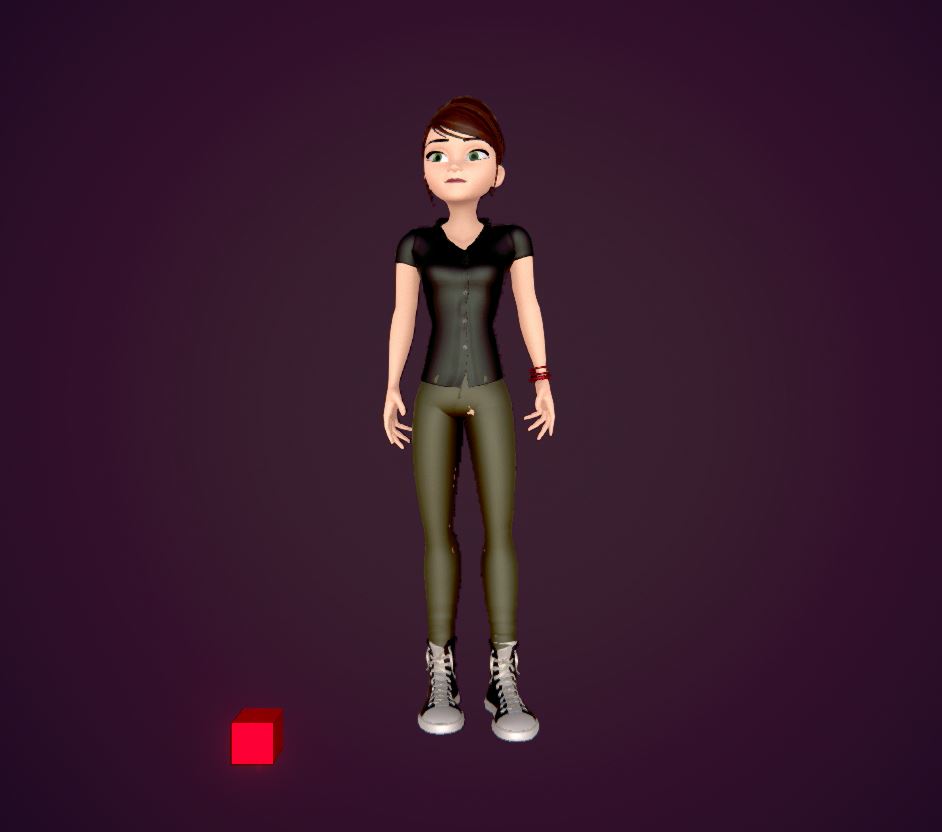

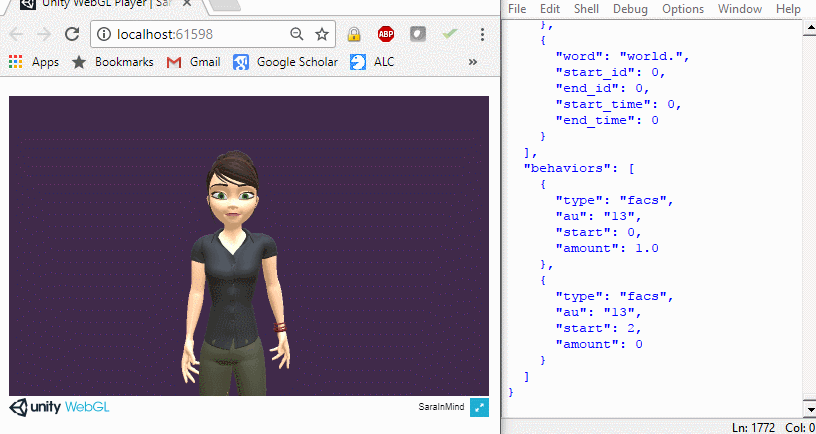

To control the virtual SARA humanoid character, a formatted JSON message is sent to the Unity Player, which then parses the incoming data and plays:

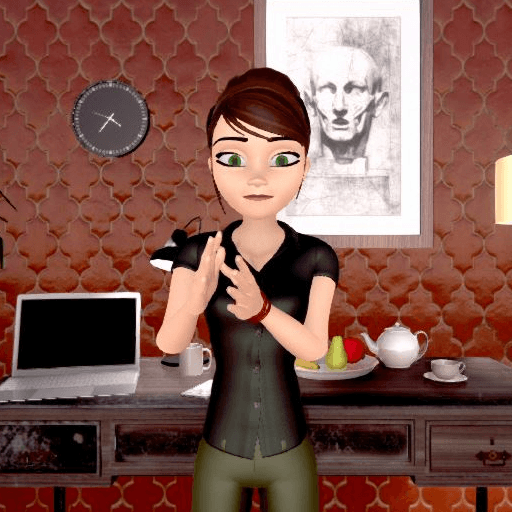

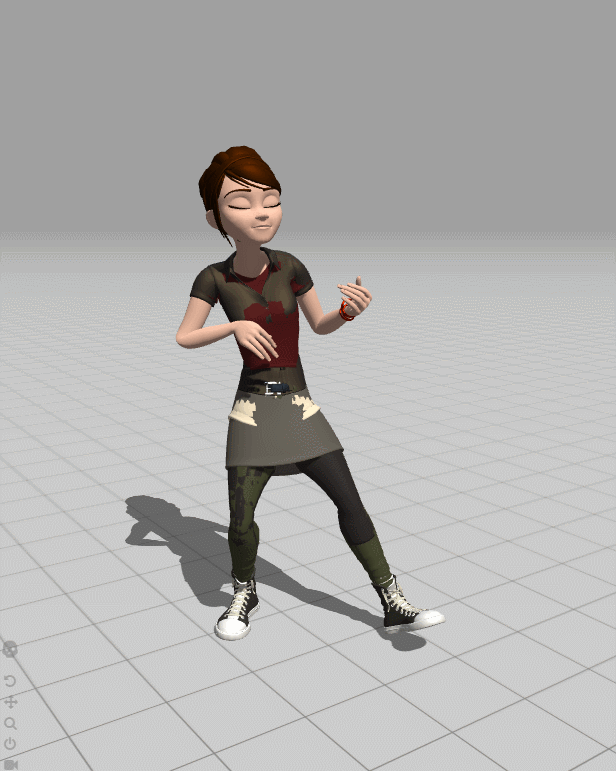

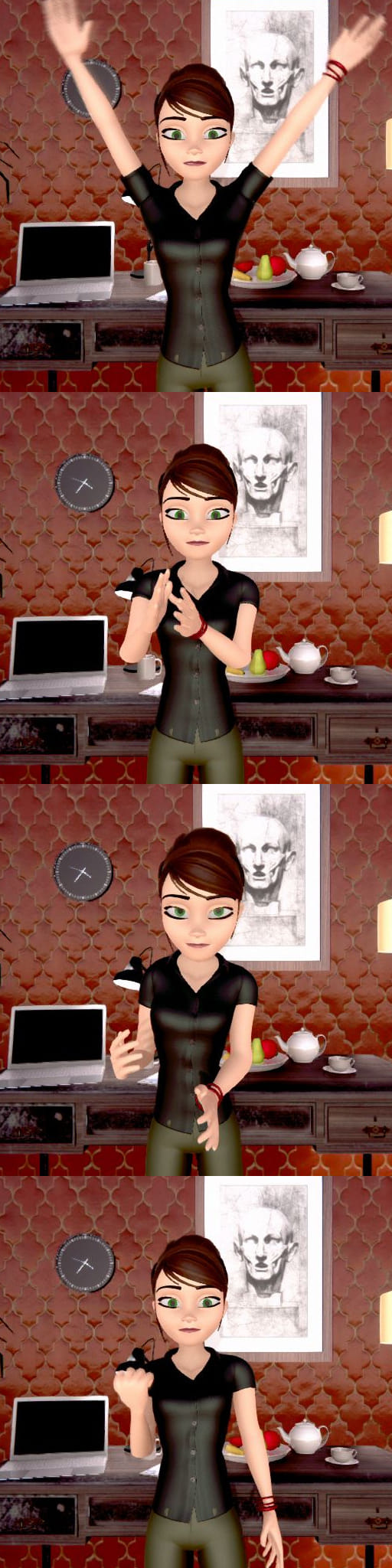

Advanced synchronized body animation control (Mecanim)

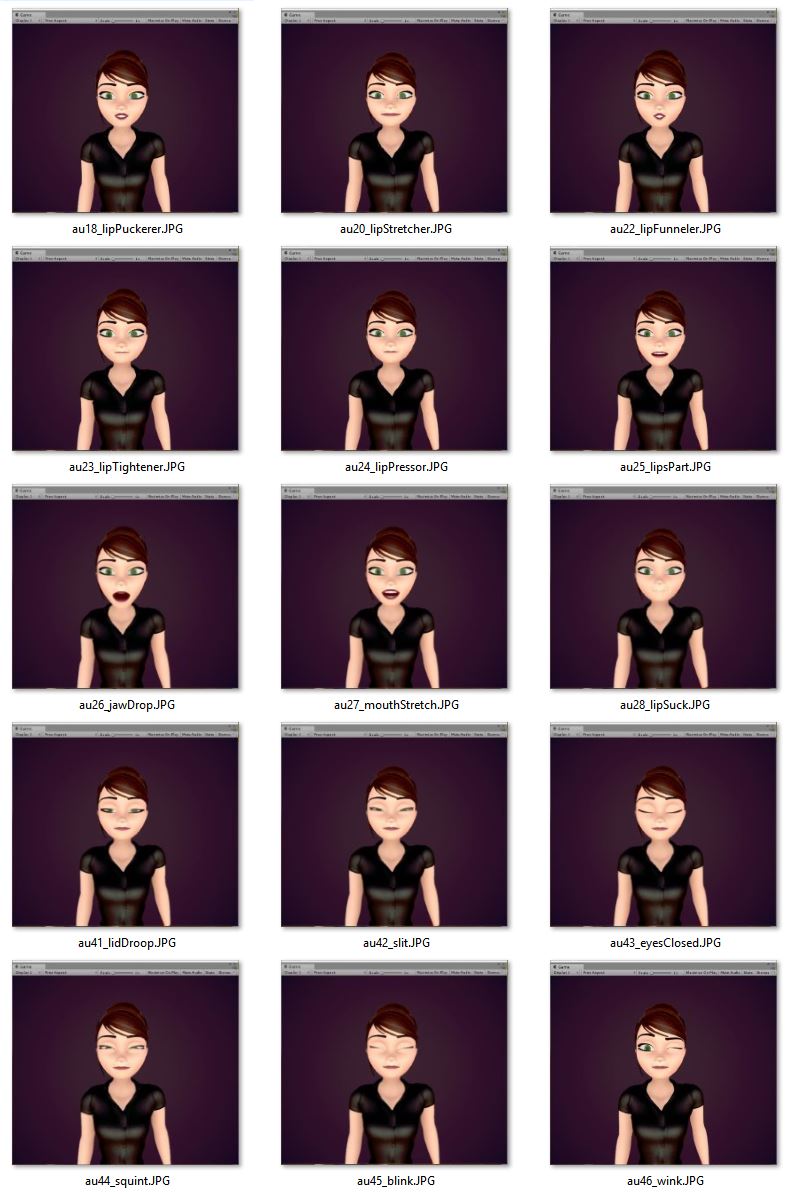

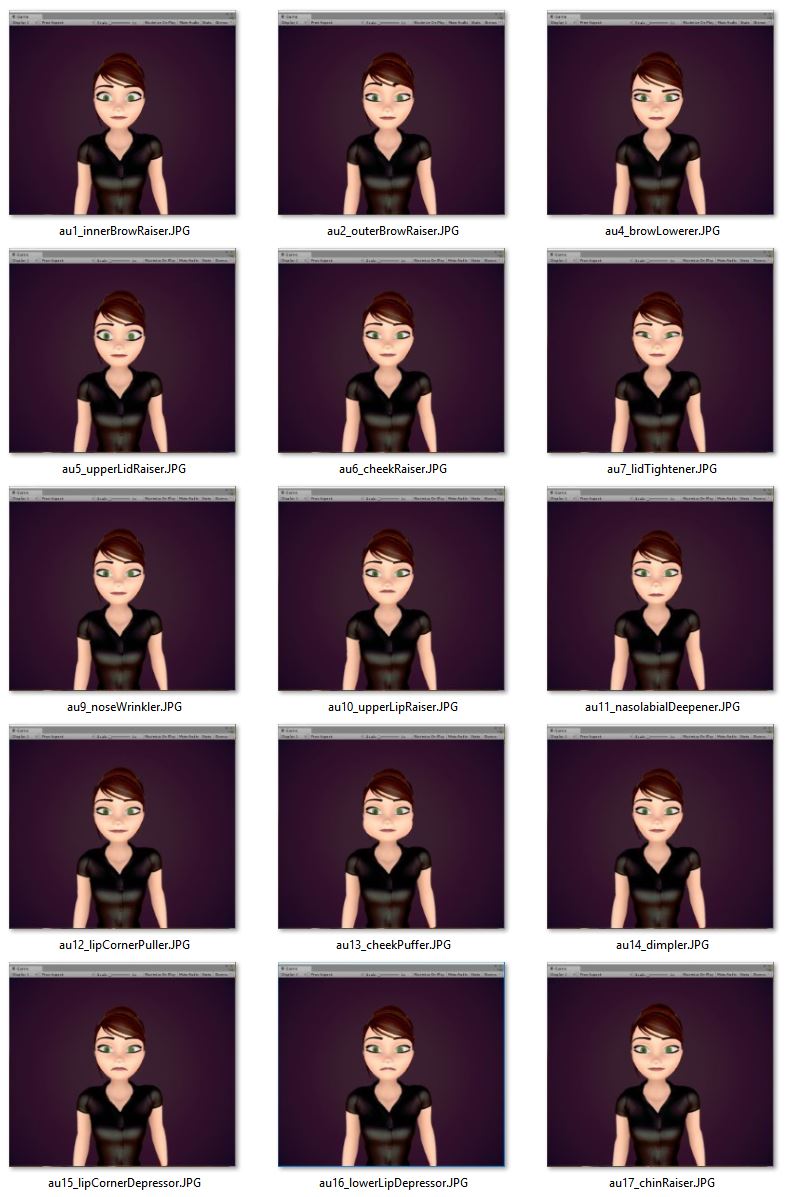

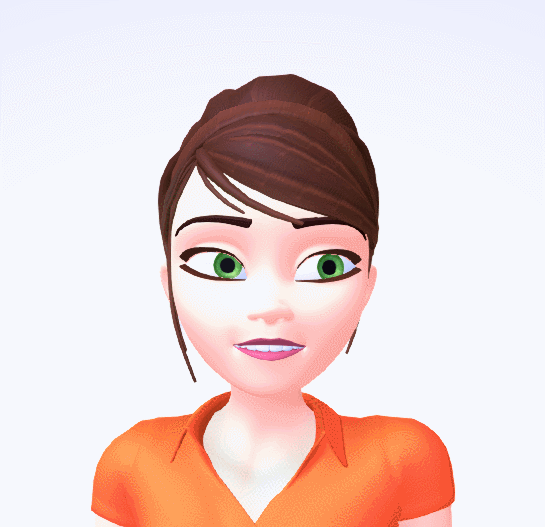

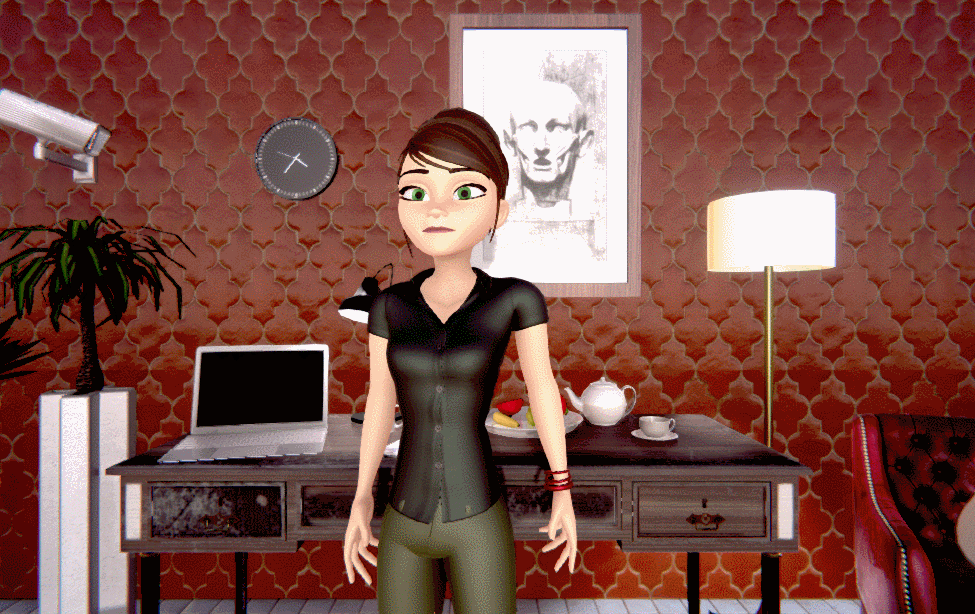

Blendshape facial expressions (FACS-based)
Lip-sync

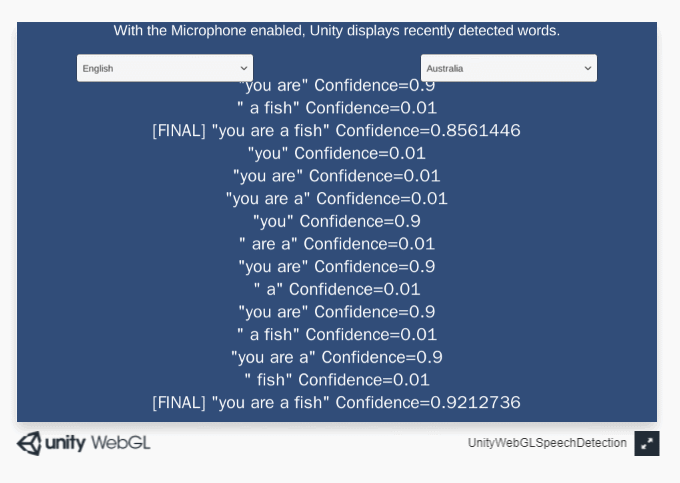

Text-to-speech

The New SARA Unity Framework was designed to serve as the foundation for all future Articulab projects — superior compatibility, faster development, easier maintenance. Building this required C# programming, Unity’s Mecanim animation system, 3D art asset development (modeling, texturing, rigging, animating), and deep knowledge of human expression.

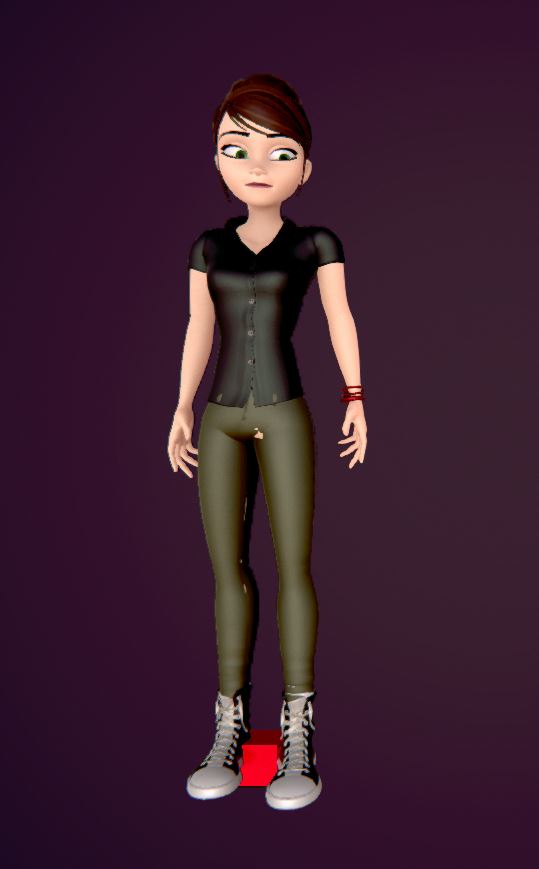

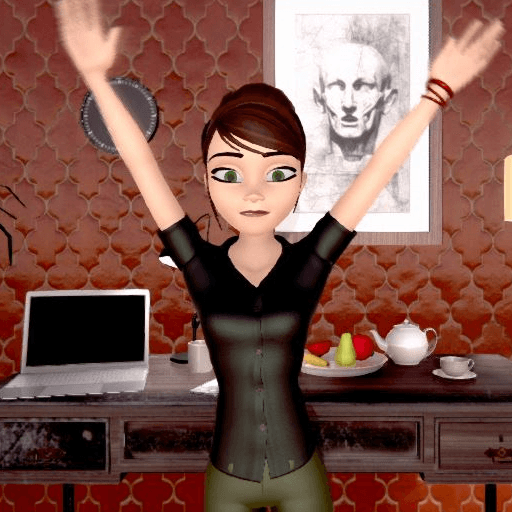

The Mery character model was rigged using Mixamo as part of the pipeline.

Technical Architecture

SARA’s AI pipeline operates through three phases:

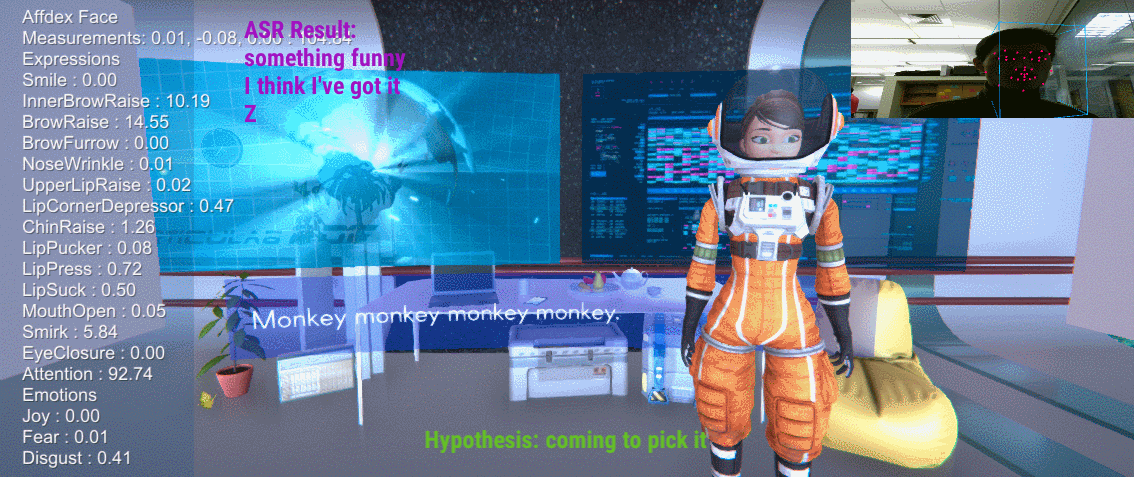

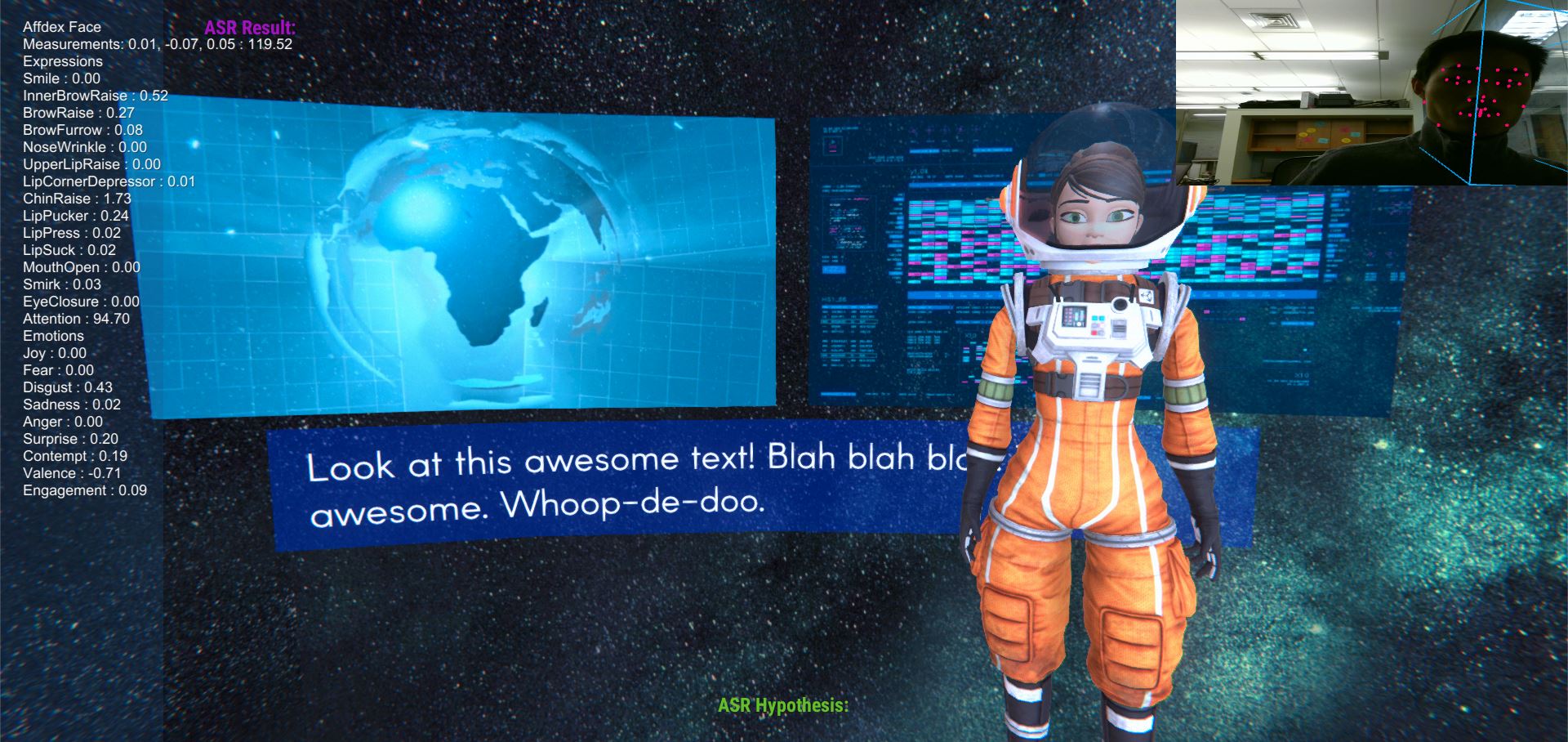

Detection — Recognizes visual (body language via OpenFace), vocal (acoustic features via OpenSmile), and verbal (conversational strategies) cues from the user. Uses recurrent neural networks and L2 regularized logistic regression to estimate rapport in real time.

Reasoning — Carries out classic task reasoning alongside novel social reasoning — a spreading activation network that selects the best conversational strategy given the current rapport level and context.

Generation — The NLG module generates language and body language (gestures, eye gaze, head nods, smiles) through BEAT (Behavior Expression Animation Toolkit) and BML (Behavior Markup Language), rendered by the virtual human.

Team

Justine Cassell — Principal Investigator
Yoichi Matsuyama, Ran Zhao, Arjun Bhardwaj, Fadi Botros, David Slebodnick, Jiajia Li, Luo Yi Tan — ArticuLab
Oscar Romero, Sushma Ananda — CMU-Yahoo InMind project
Summer 2016 Interns: Divya Sai Jitta, Orson Xu, Ting Yan, Ying Shen, Zhao Meng
Fall 2016 Interns: Akanksha Kartik, Alexander Bainbridge, Anna Tan, Chileshe Otieno, Ethel Chou, Jacqueline Yeung, Sara Stalla, Sasha Volodin

Zhao, Sinha, Black & Cassell (2016). Socially-Aware Virtual Agents: Automatically Assessing Dyadic Rapport from Temporal Patterns of Behavior. IVA 2016 — Best Student Paper
Zhao, Sinha, Black & Cassell (2016). Automatic Recognition of Conversational Strategies in the Service of a Socially-Aware Dialog System. SIGDIAL 2016
Matsuyama, Bhardwaj, Zhao, Romero, Akoju & Cassell (2016). Socially-Aware Animated Intelligent Personal Assistant Agent. SIGDIAL 2016

Media Coverage

Featured in BBC Business Daily, Foreign Policy, CNBC Africa, USA TODAY, MIT Technology Review, CNET, Popular Science, Science Friday, Washington Post, Financial Times, Bloomberg Quint, and many more.

Funding

Microsoft Faculty Research Award, Microsoft equipment donation, gift from LivePerson, IT R&D program of MSIP/IITP [2017-0-00255], Google Faculty Award and Google Cloud Platform donation. Computing power by DroneData.
