Multipurpose Mobile Manipulator MkII — Megamark
Bigger, better, and stronger — the Megamark is a full-size humanoid robot platform with an all-metal aluminum body, 6–8 hour battery life, cross-platform support, and modular 3D-printed grippers for tasks like delivering coffee, watering plants, drawing pictures, and DIY telepresence.
Overview

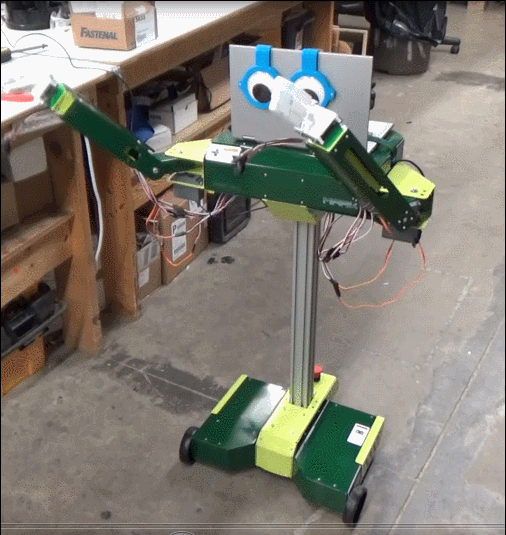

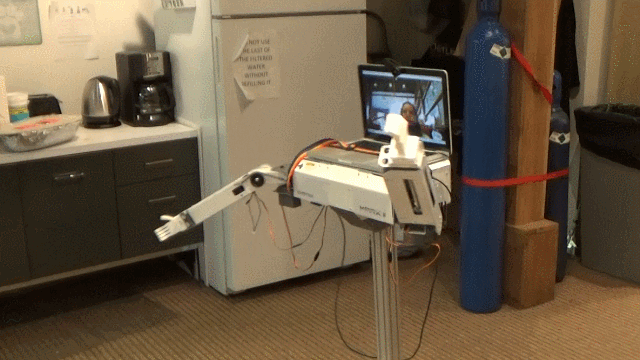

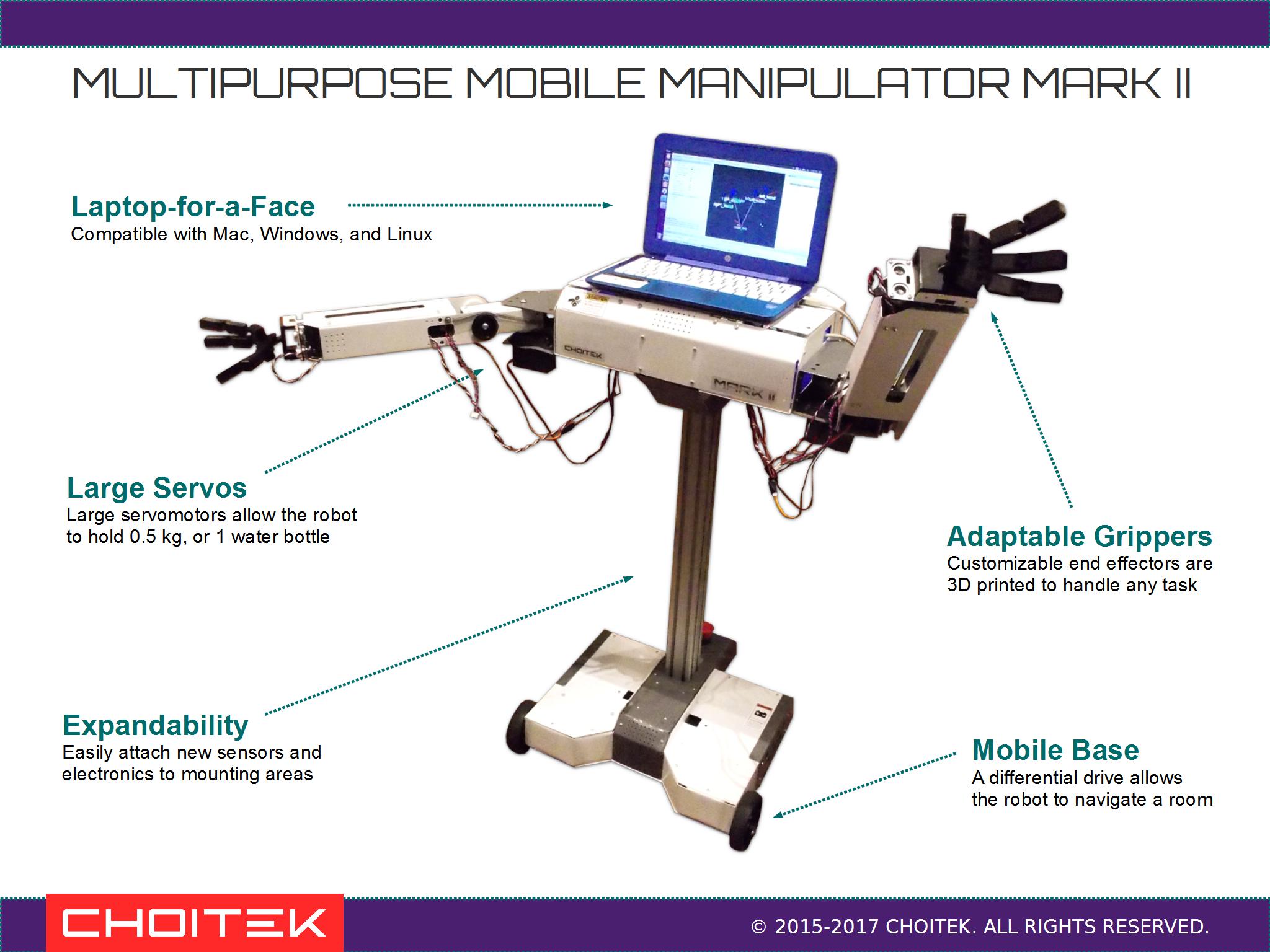

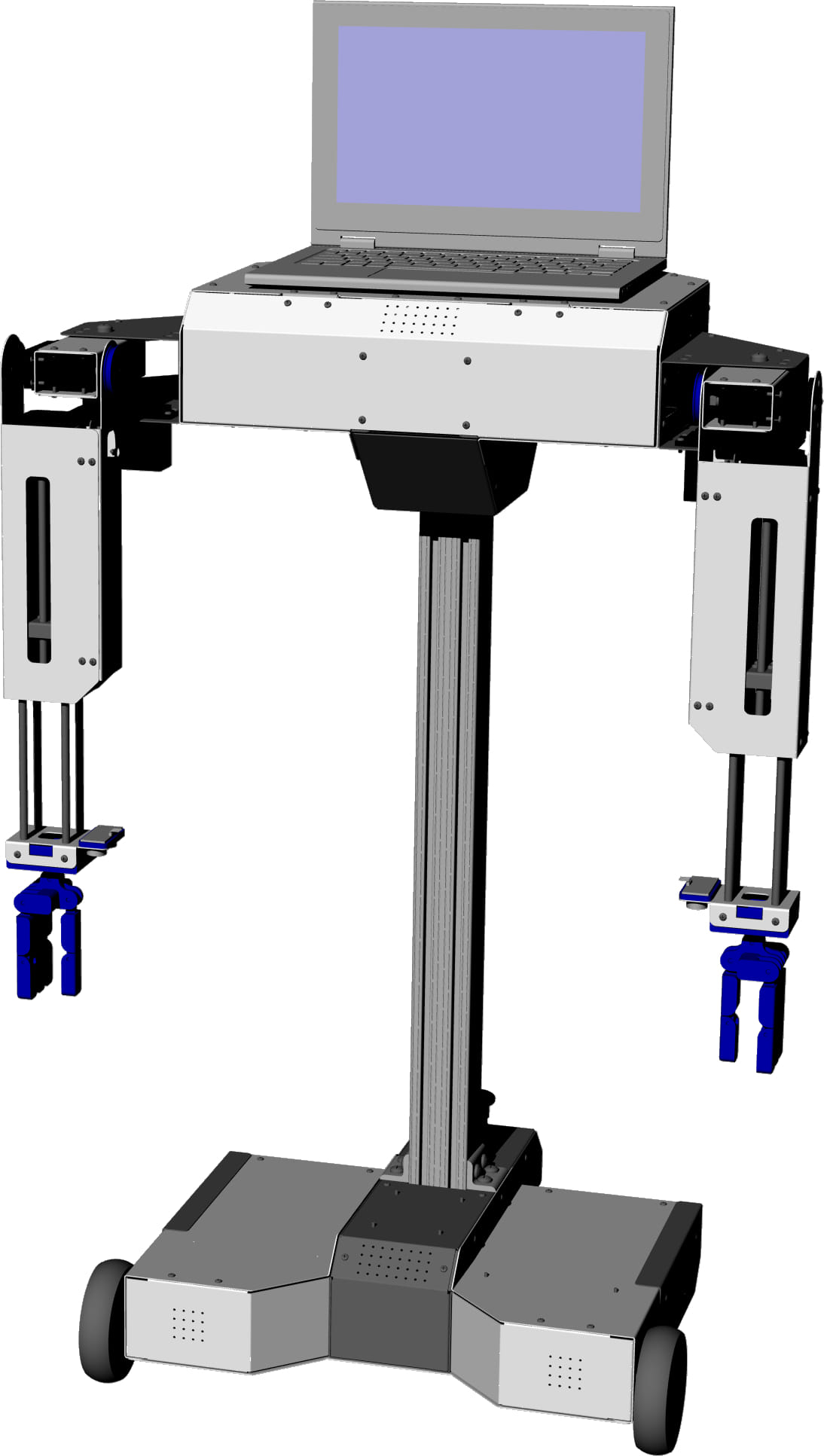

The Multipurpose Mobile Manipulator MkII, nicknamed the Megamark, is the upgraded successor to the MMM MkI. It’s bigger, better, and stronger — now featuring an all-metal aluminum body for improved durability and payload capacity, plus a host of new features.
Key Features

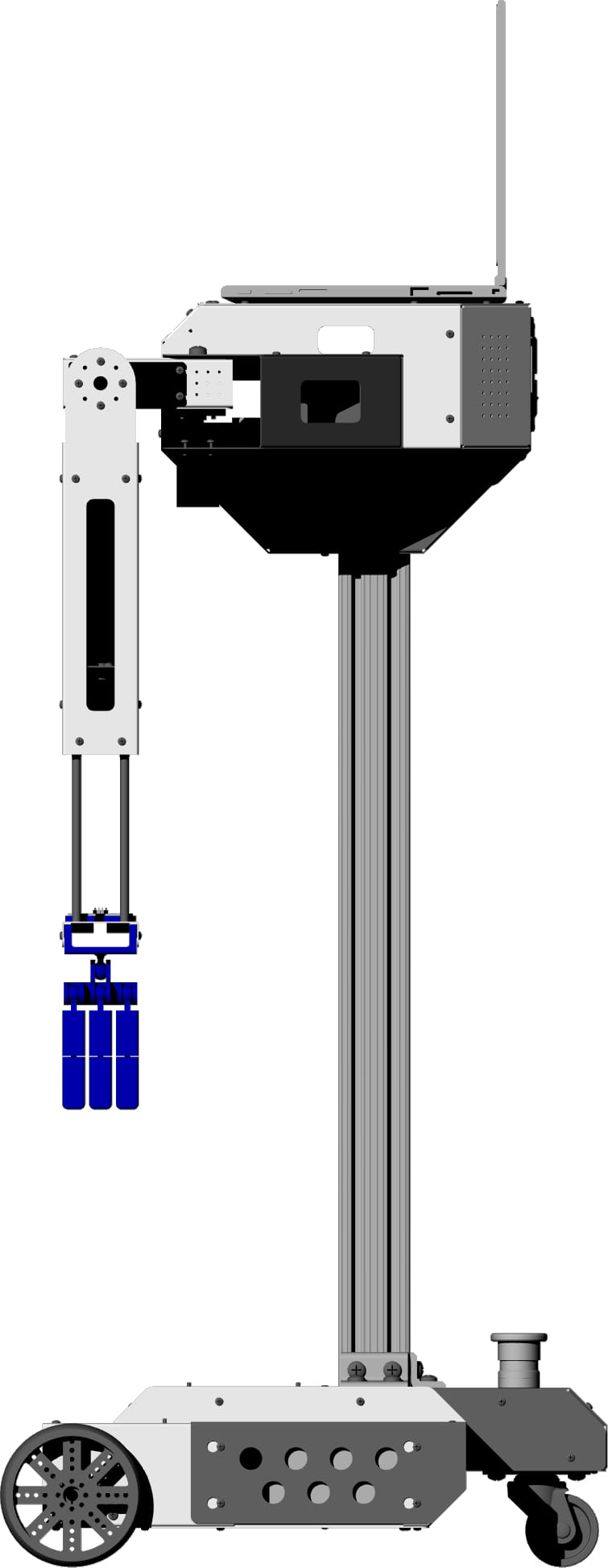

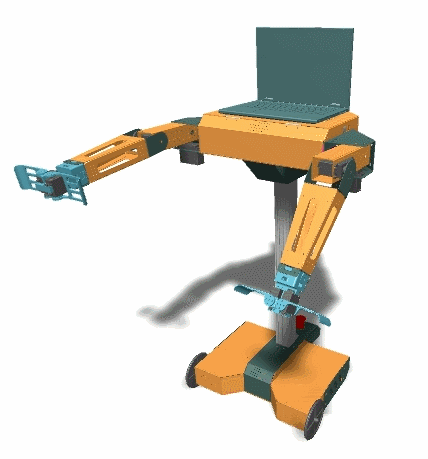

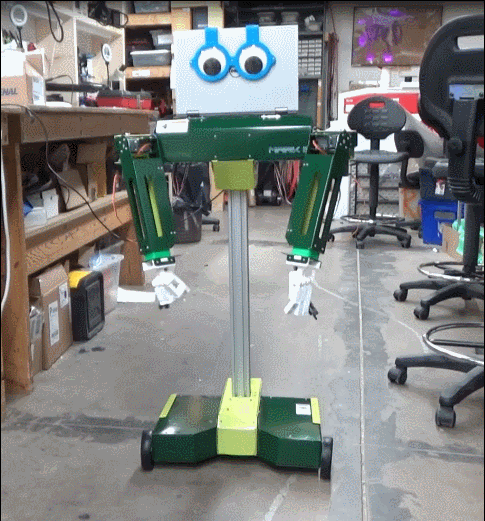

- All-metal aluminum body — base, arms, and chest detach for easy transportation and storage

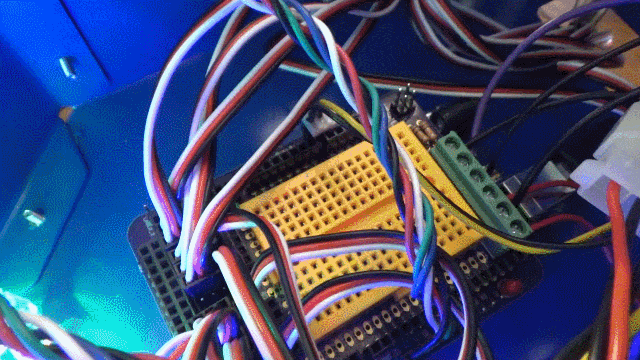

- Two 12V 7AH SLA batteries — 6–8 hours of runtime under normal load, with battery life indicator
- Arduino Mega 2560 — connects to the robot’s laptop-for-a-face via USB

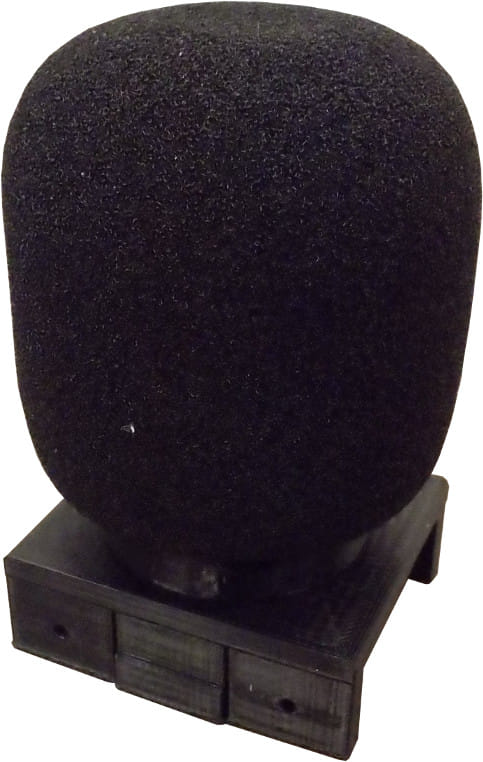

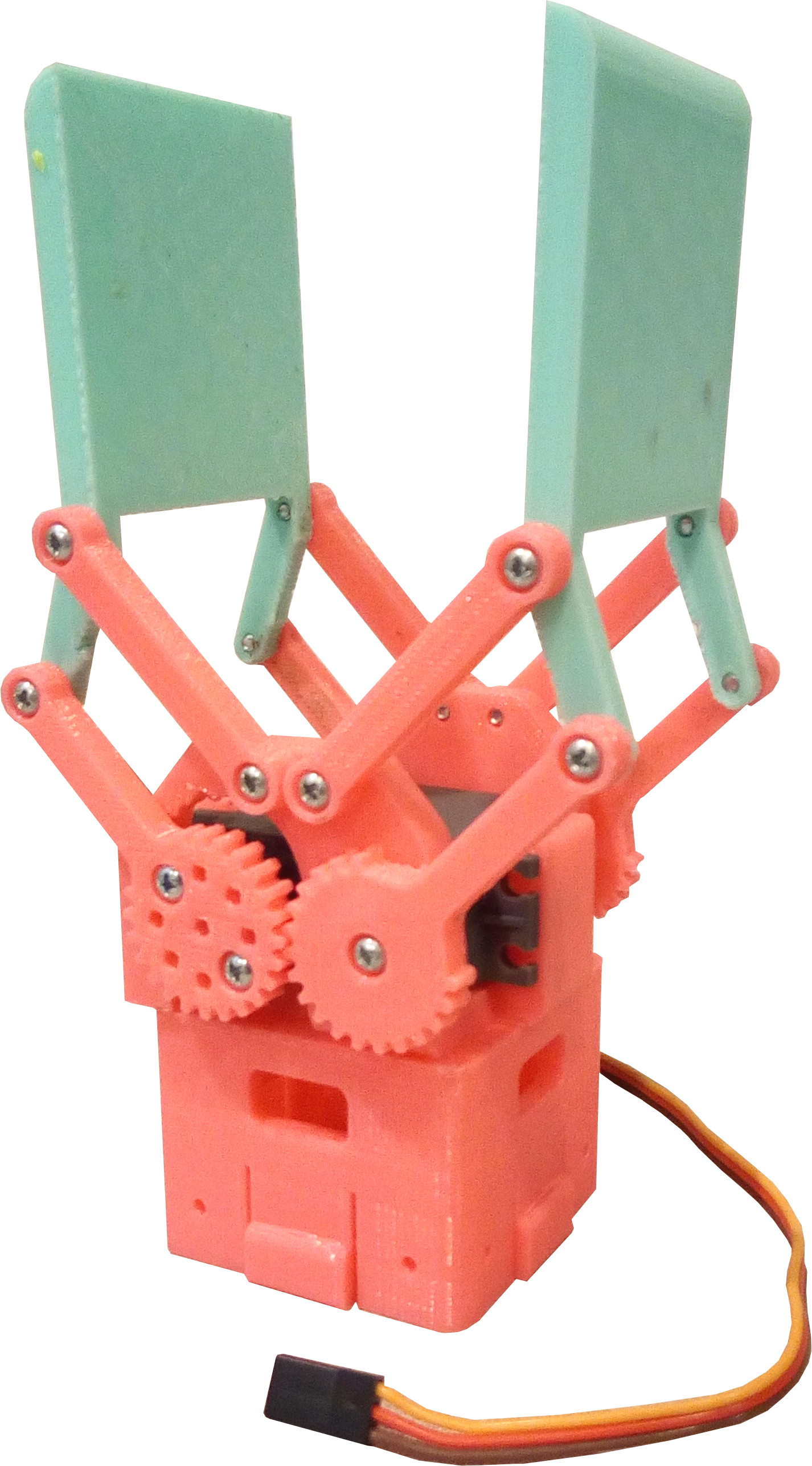

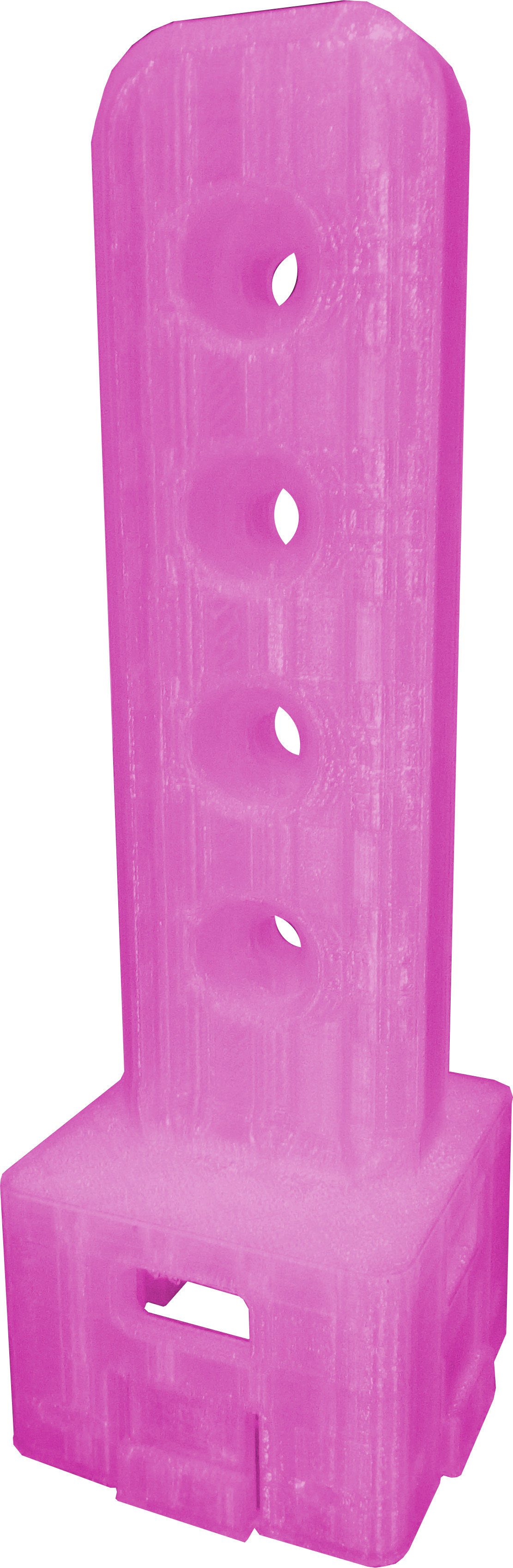

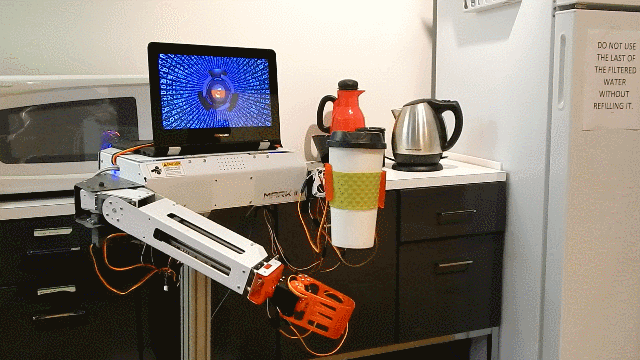

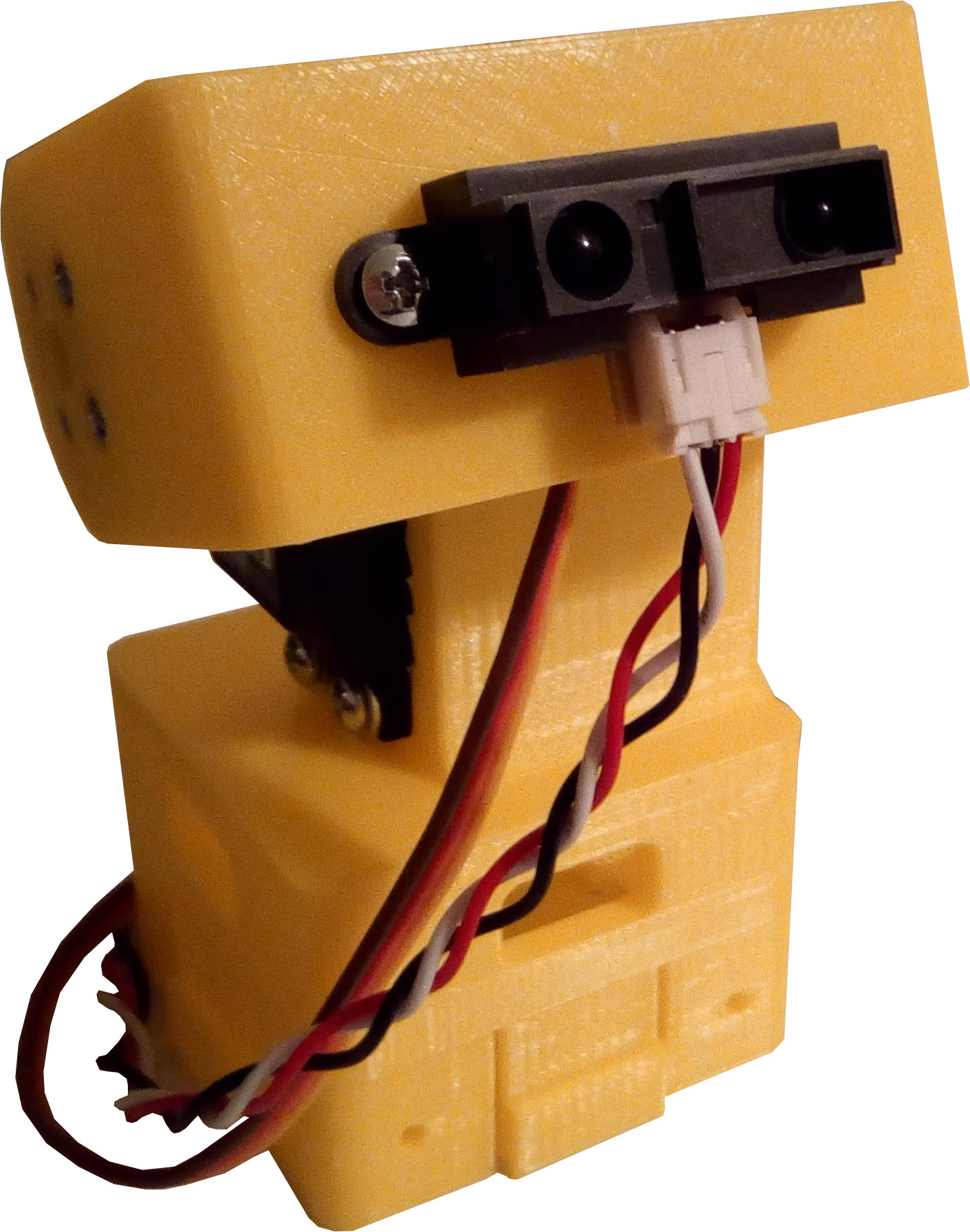

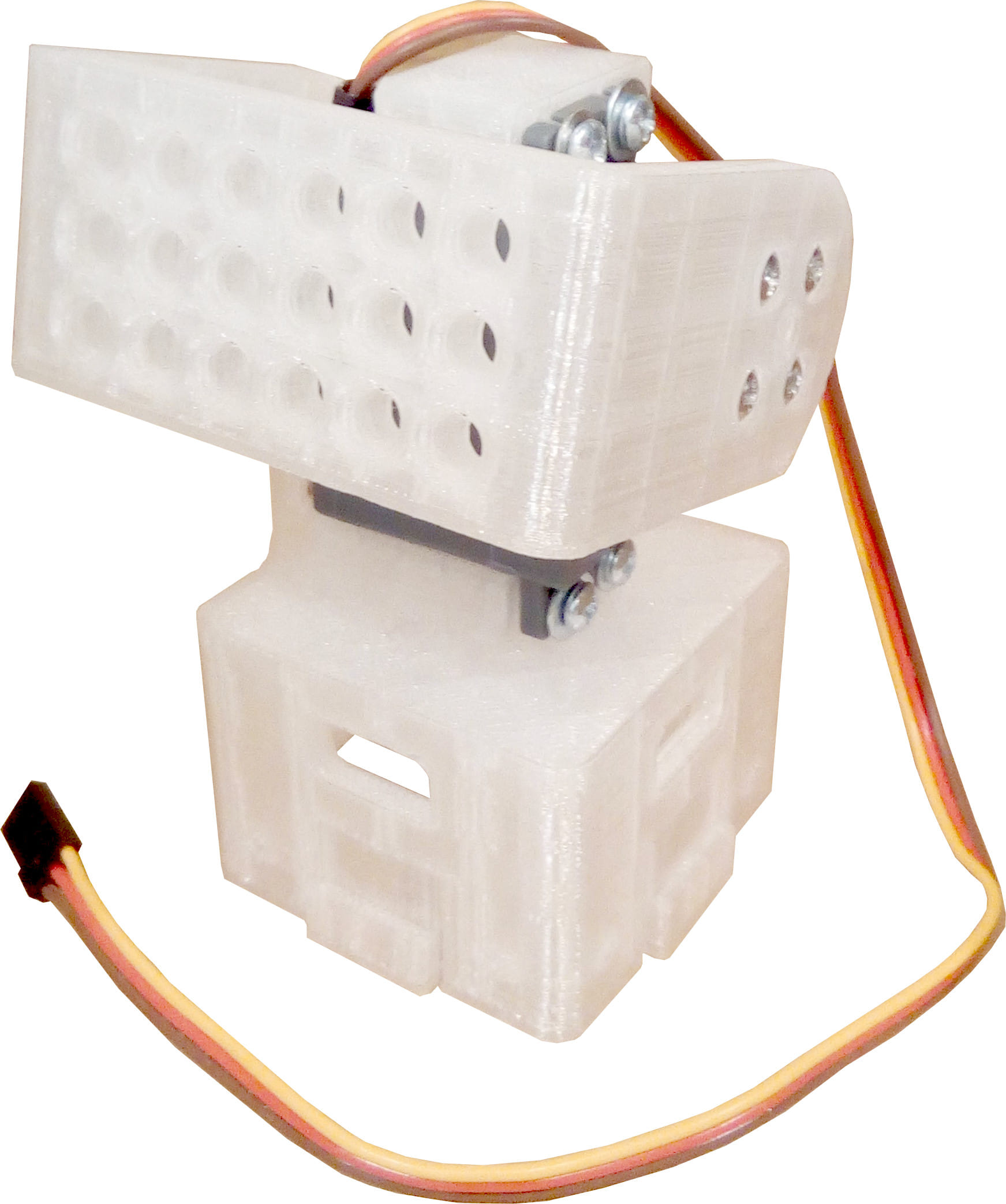

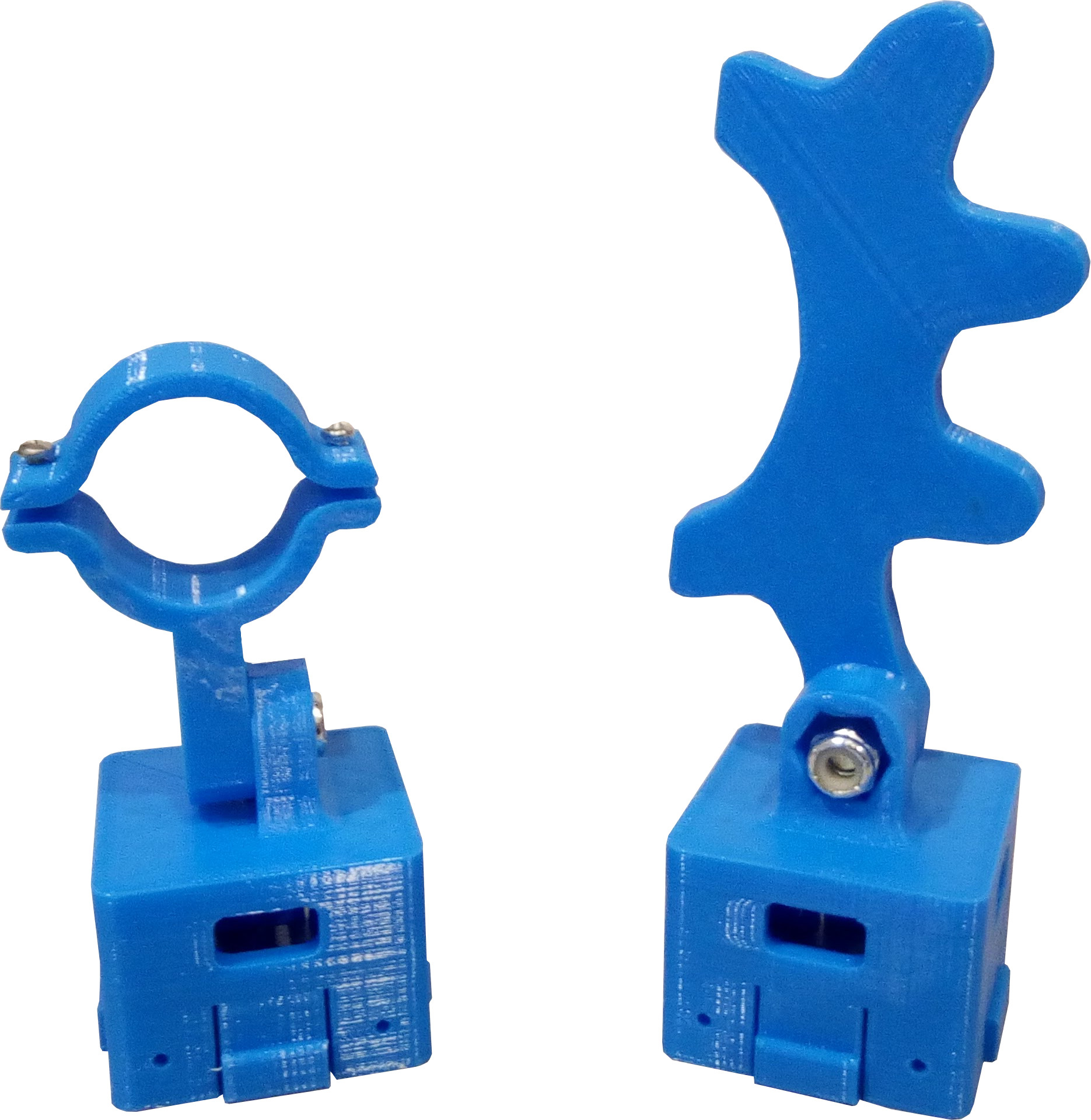

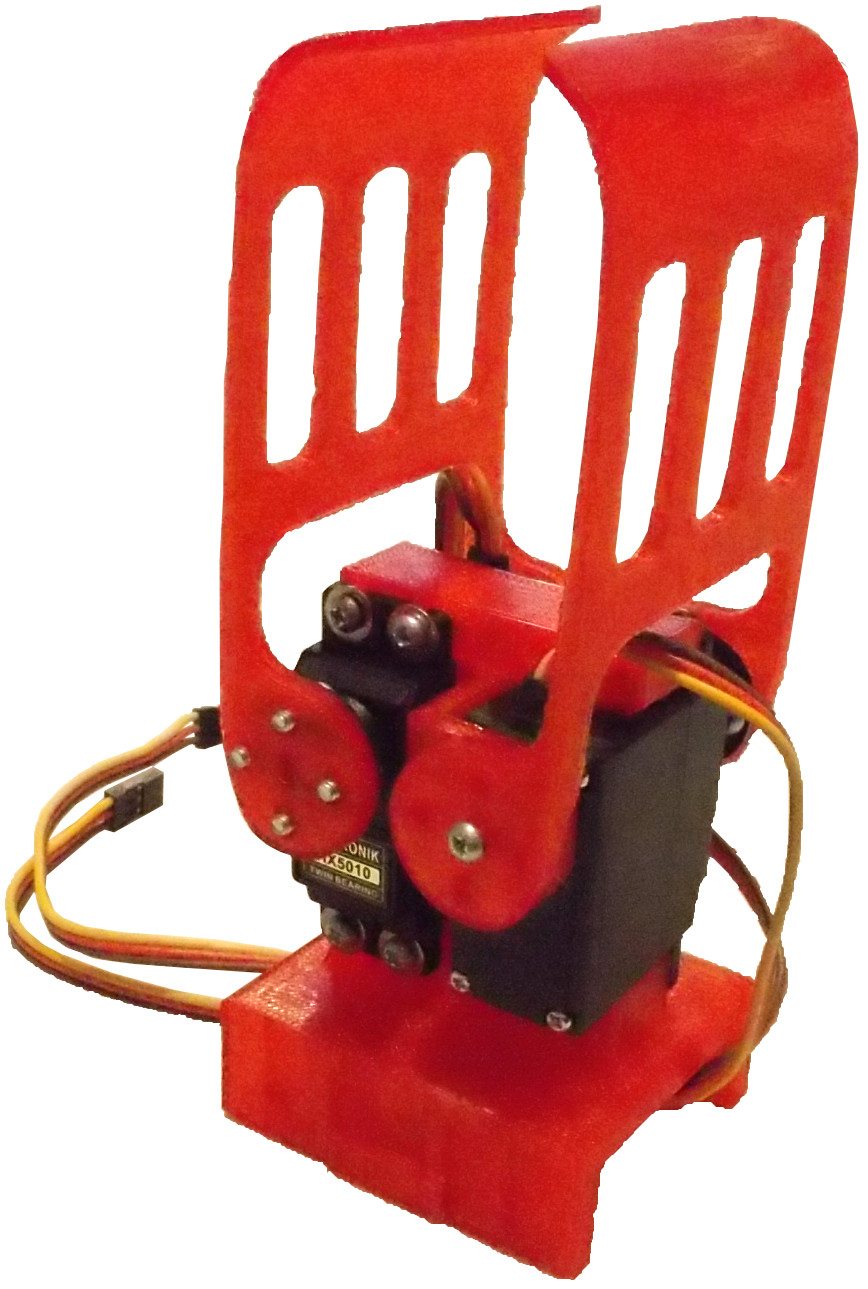

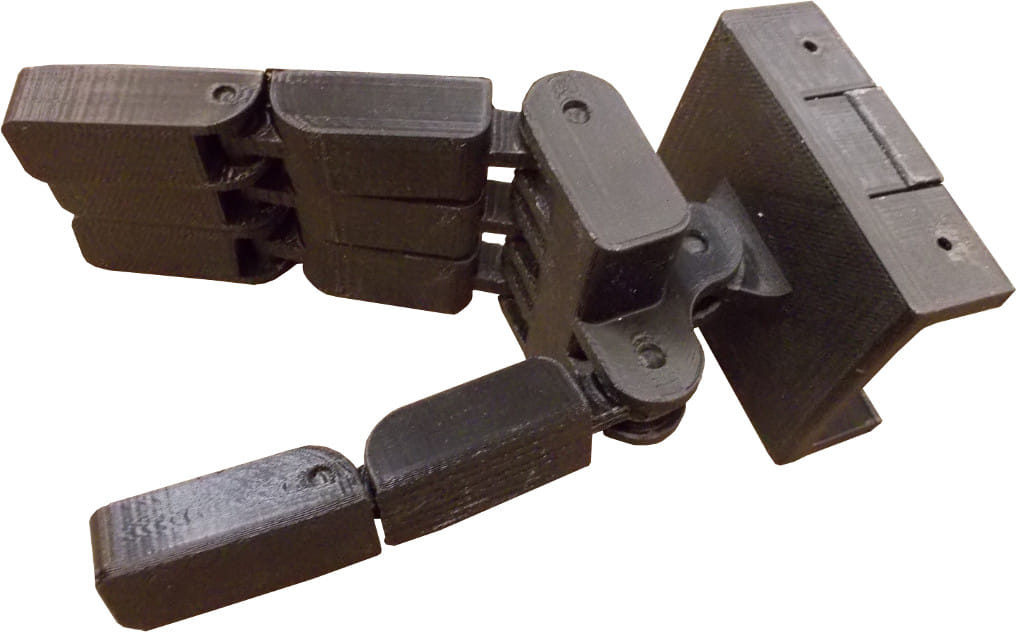

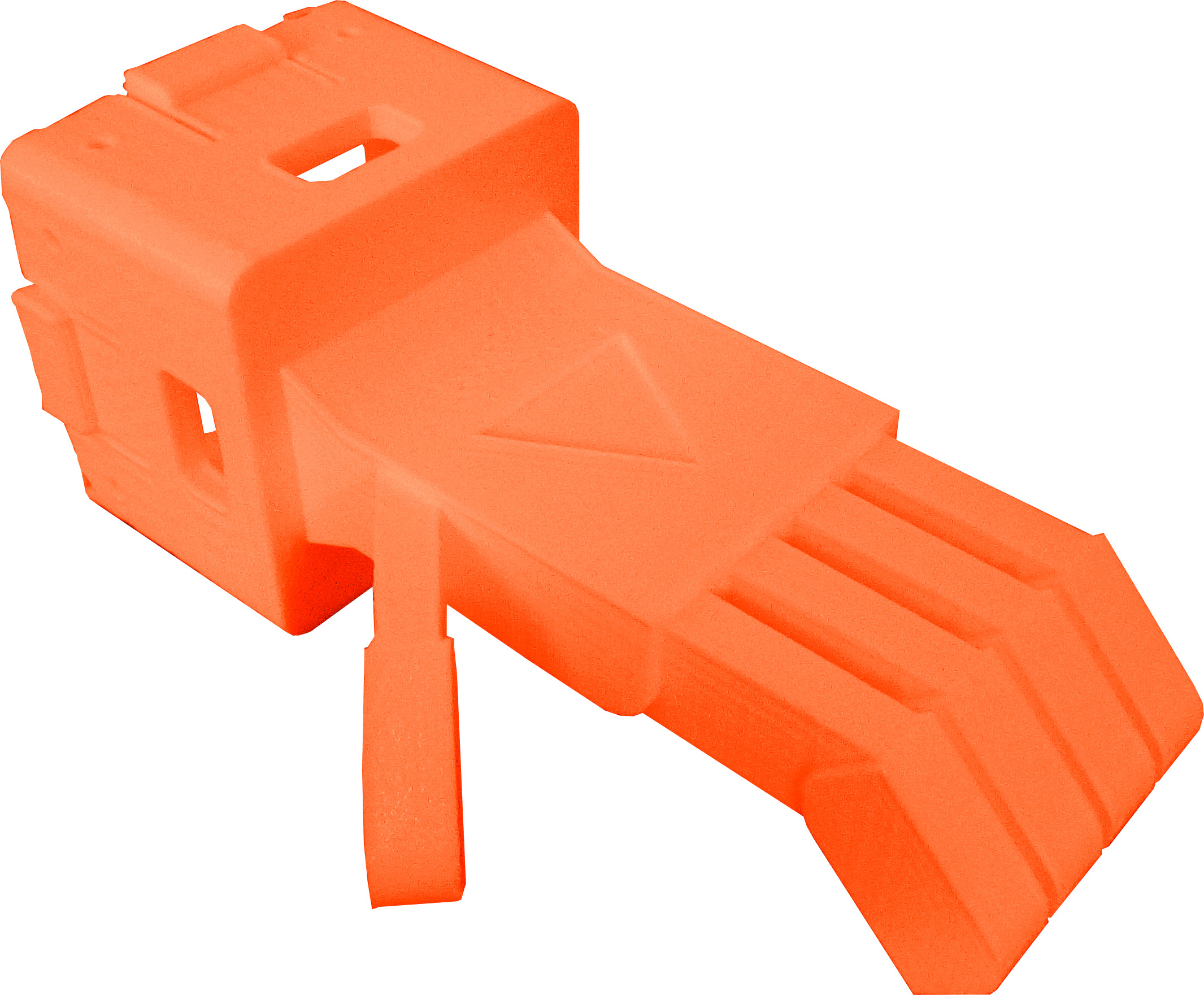

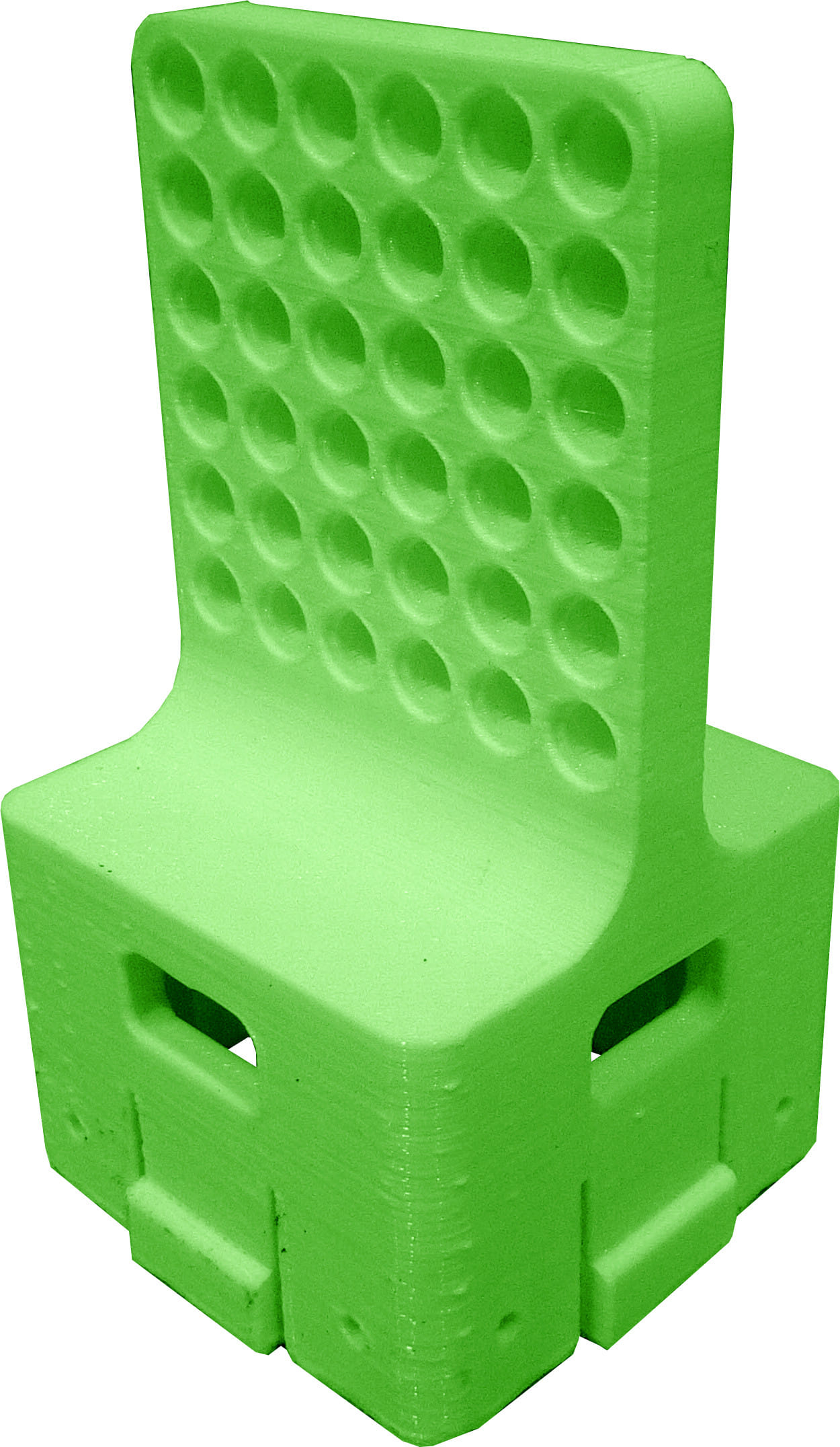

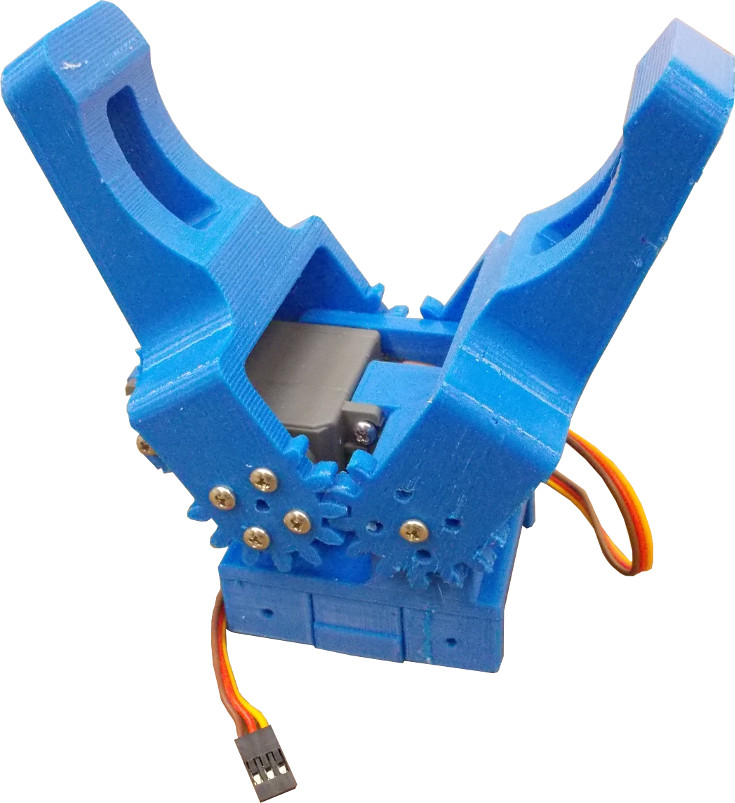

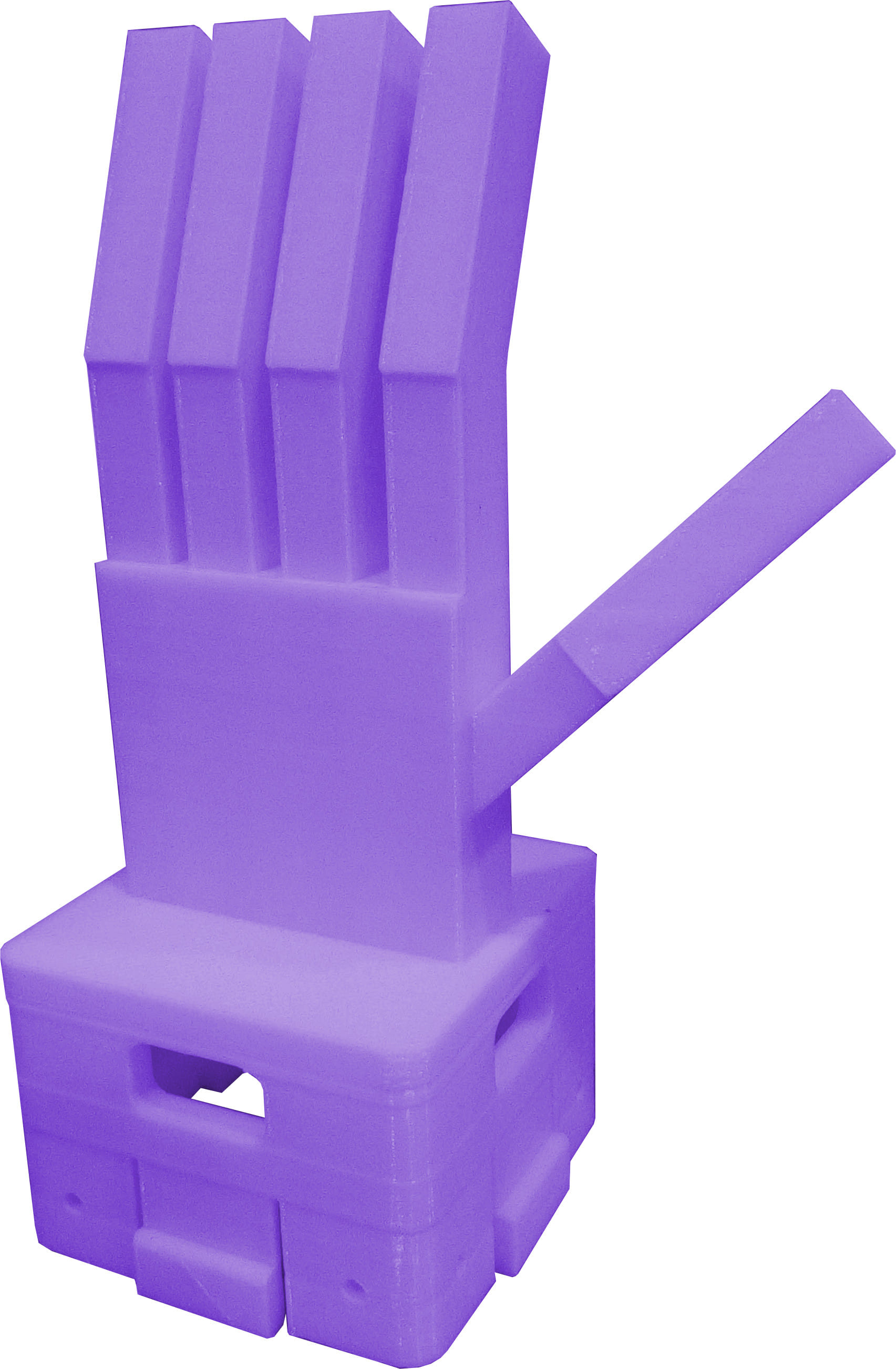

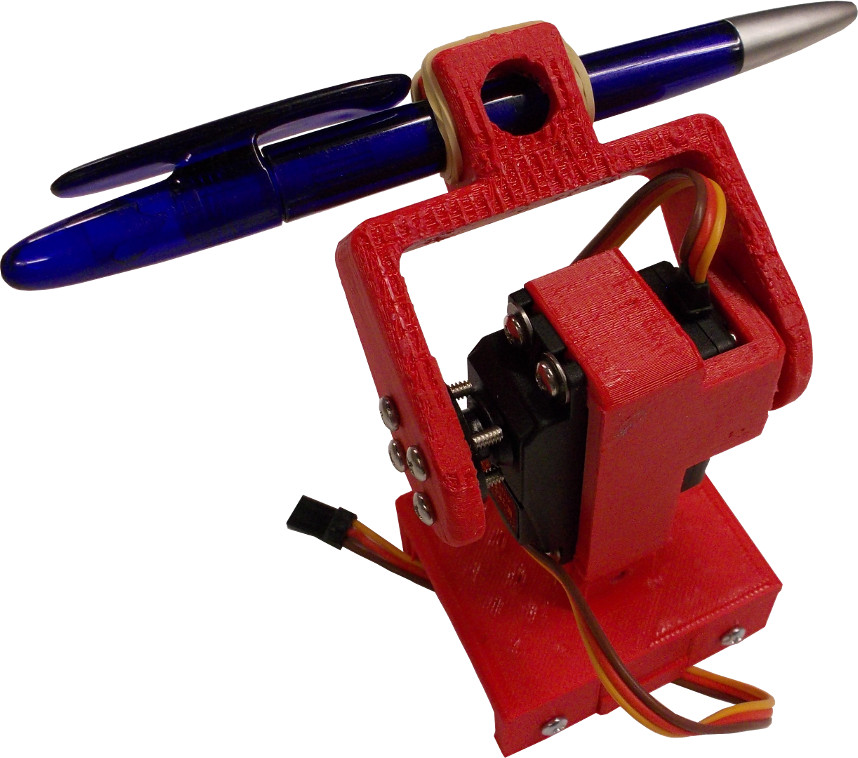

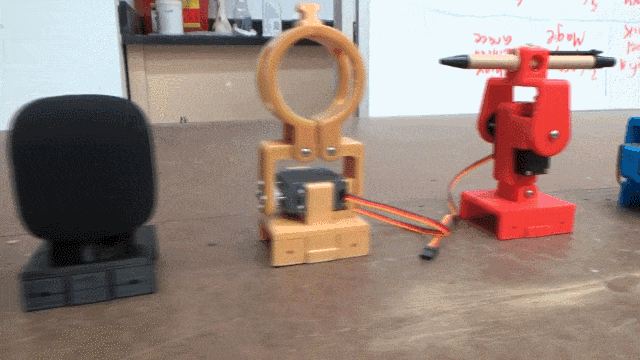

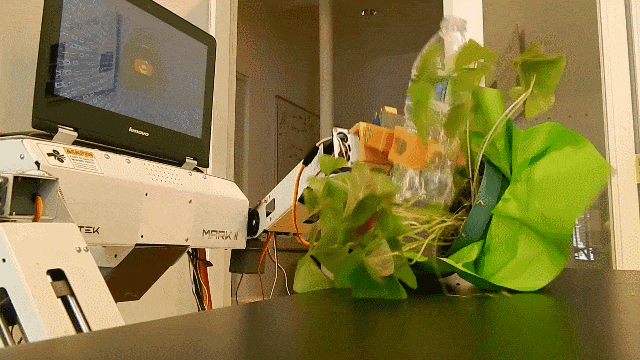

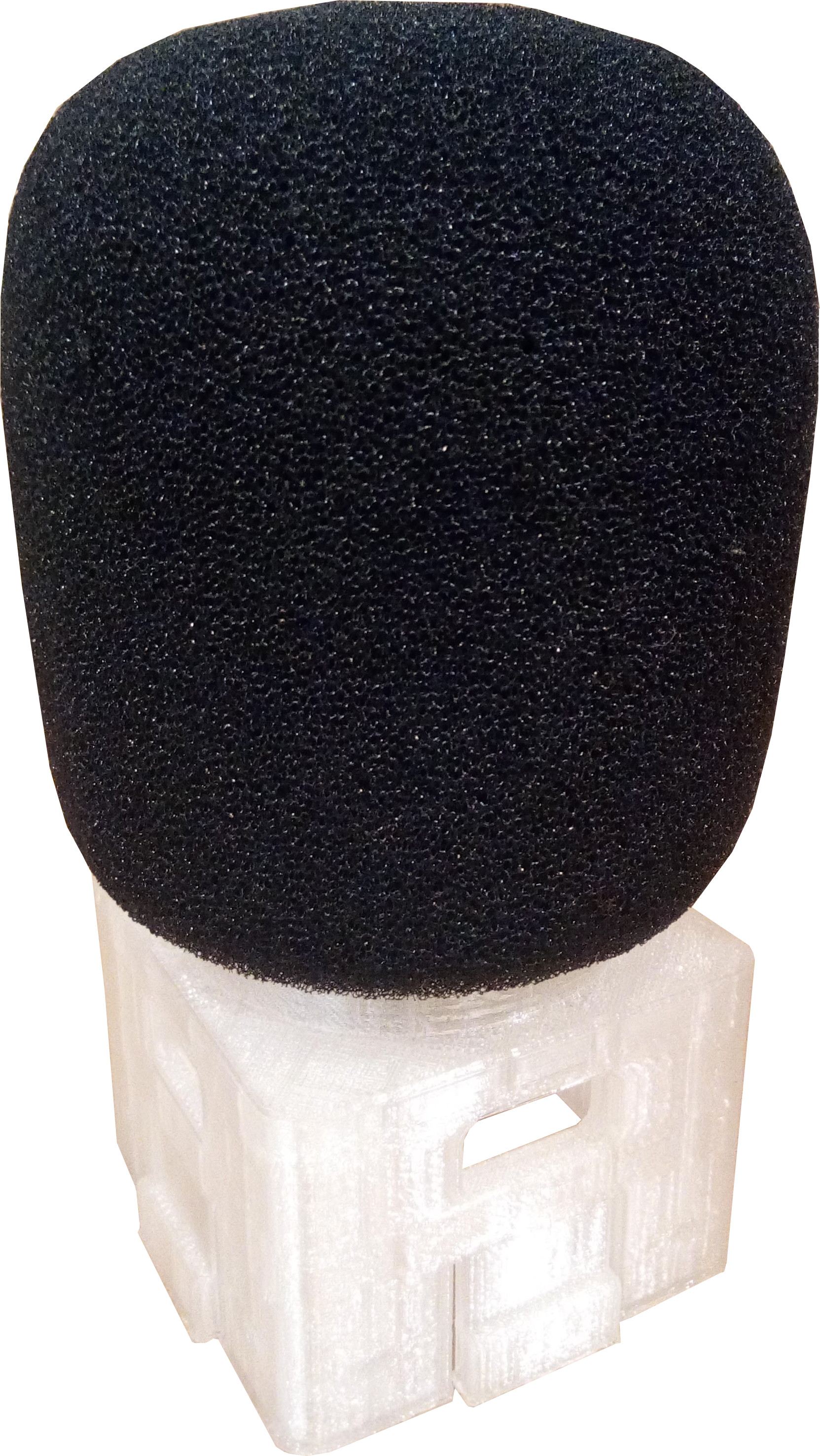

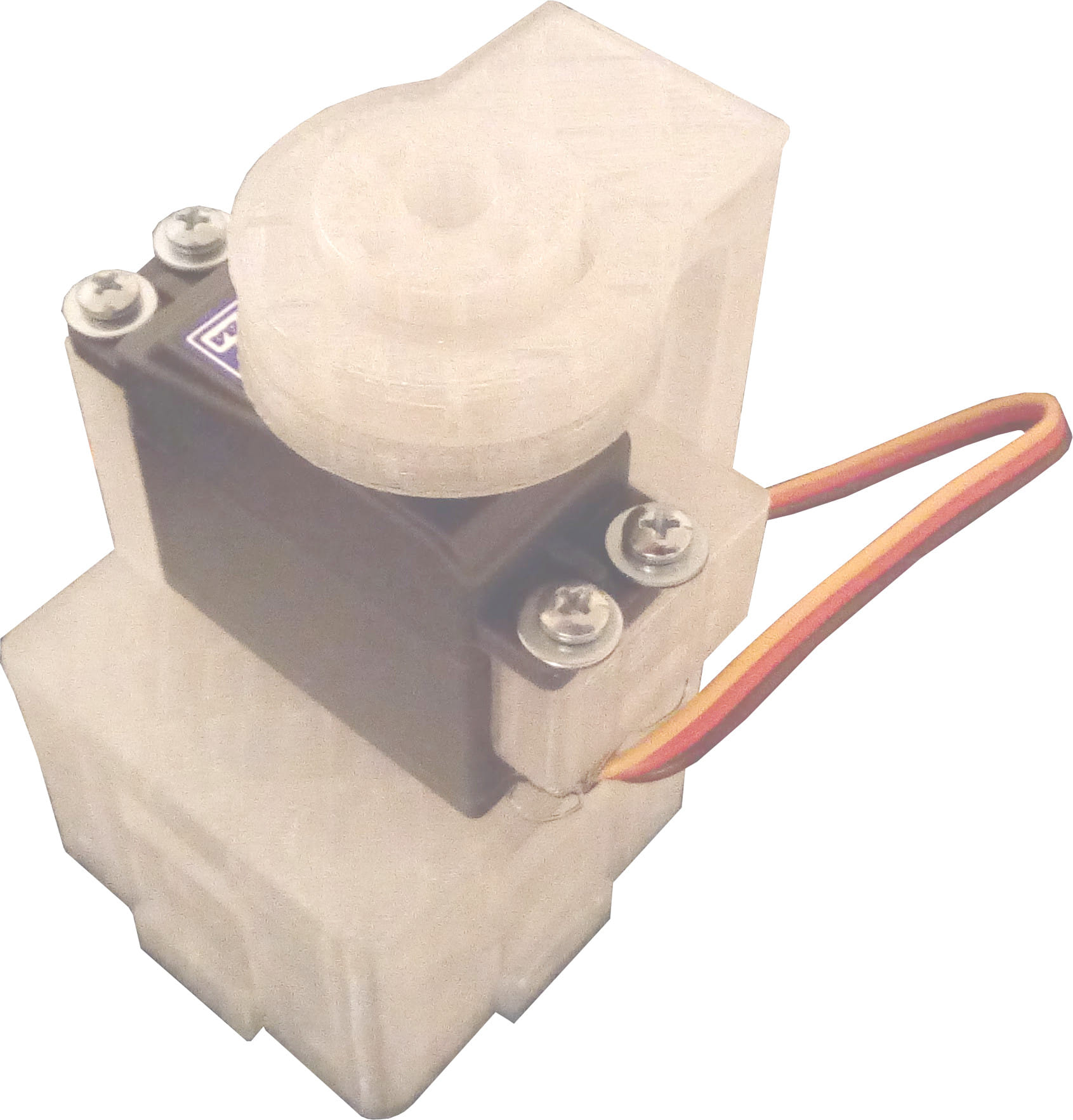

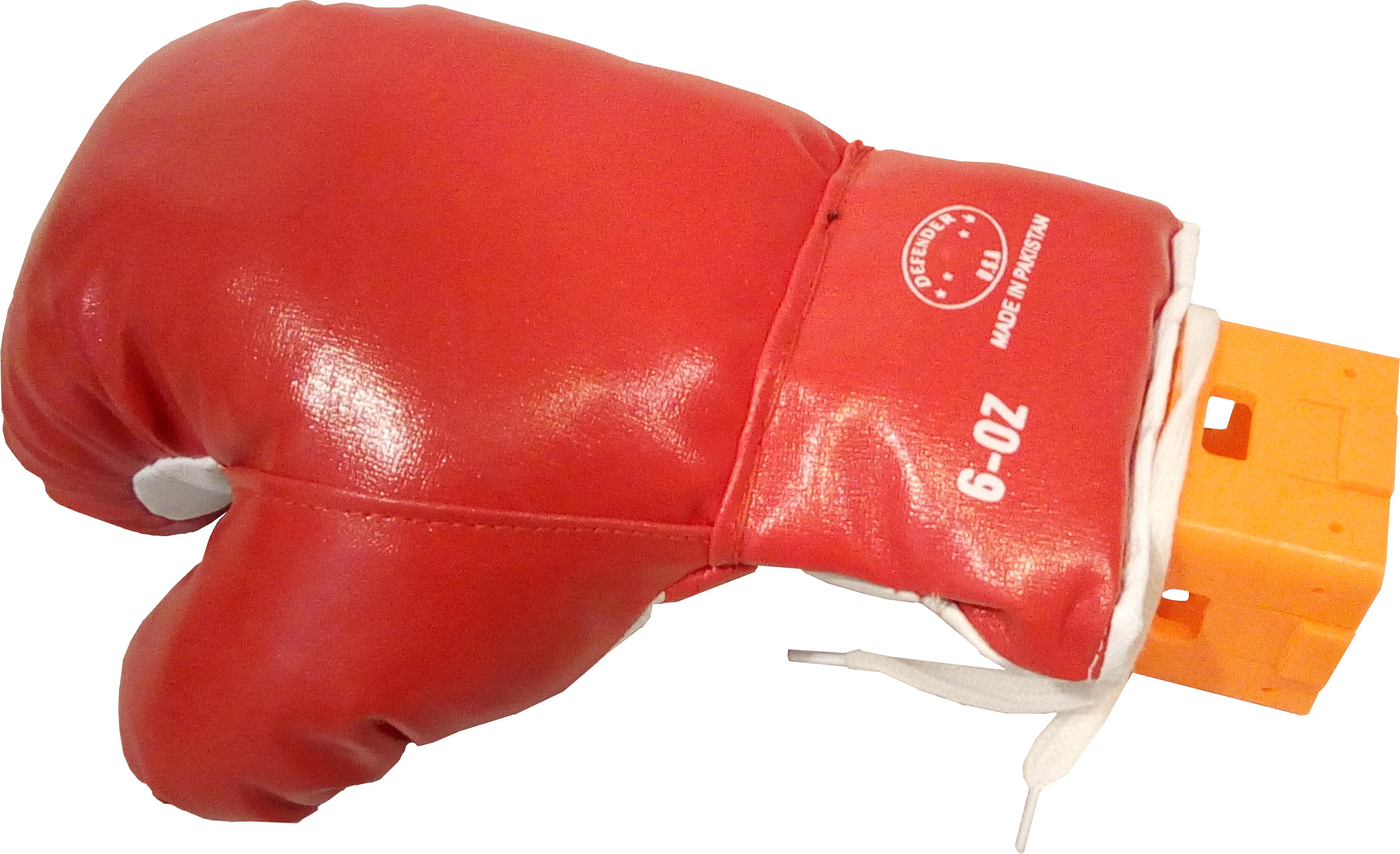

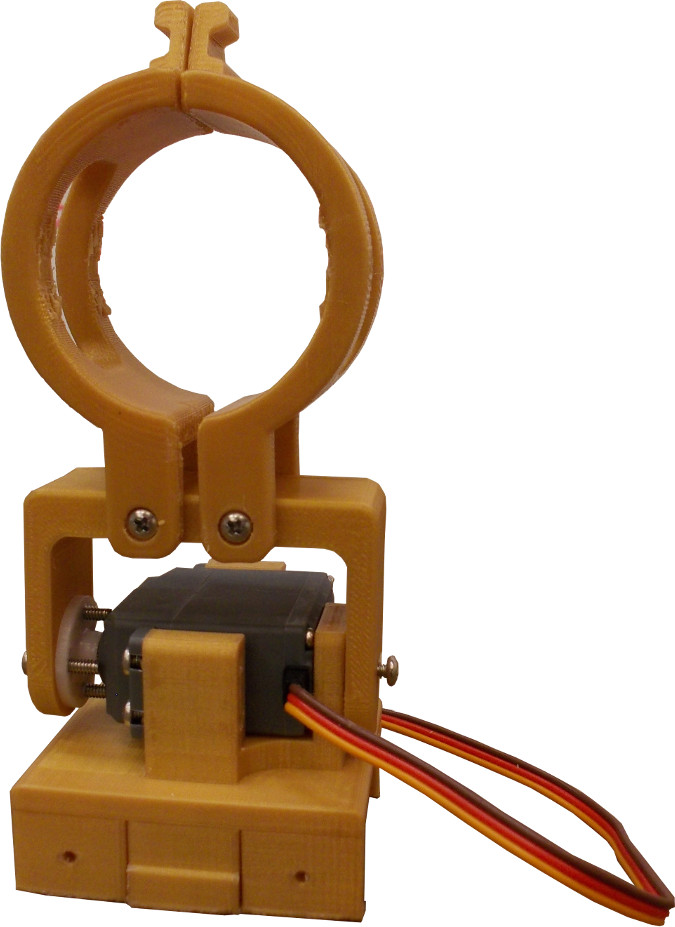

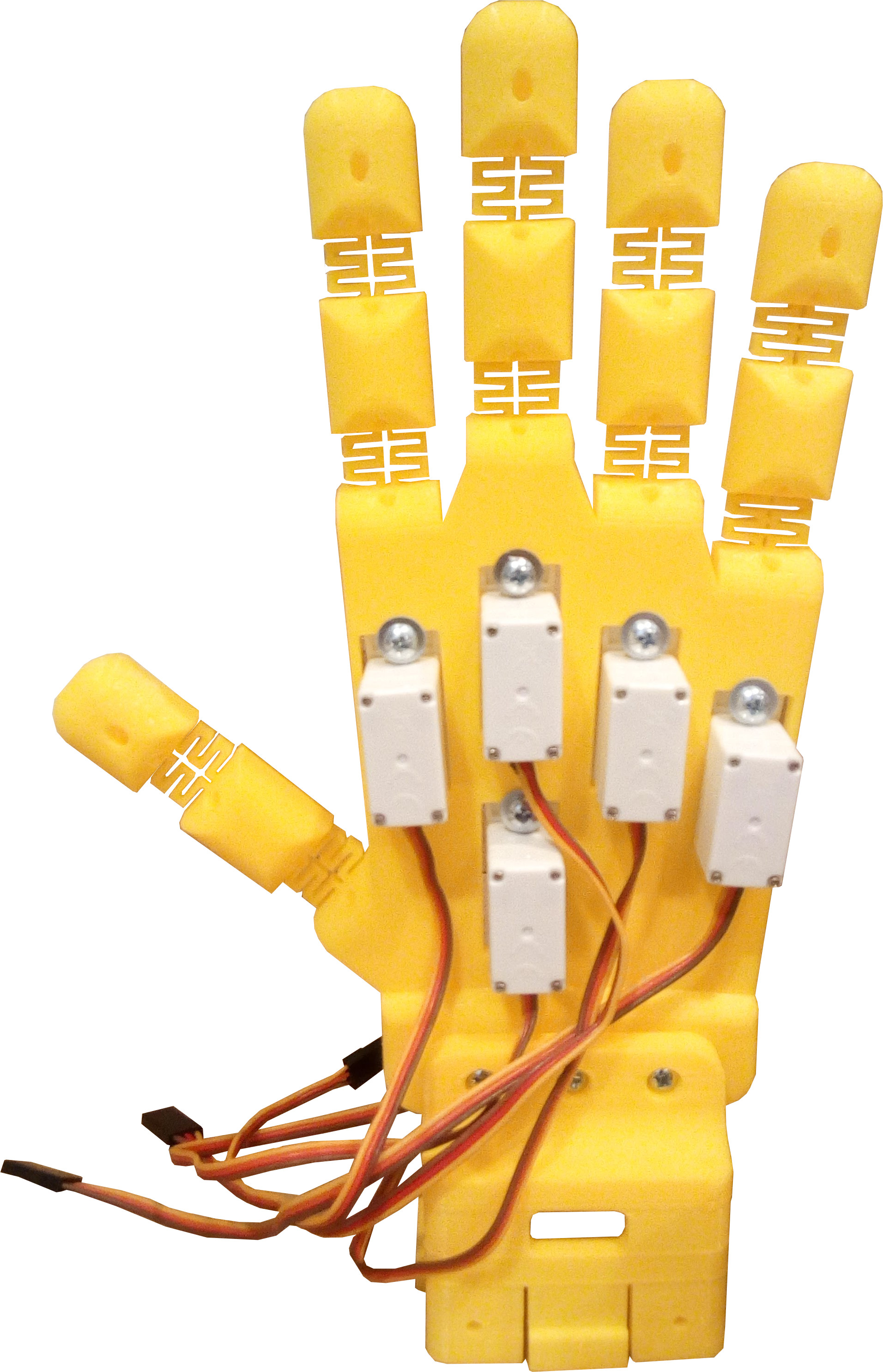

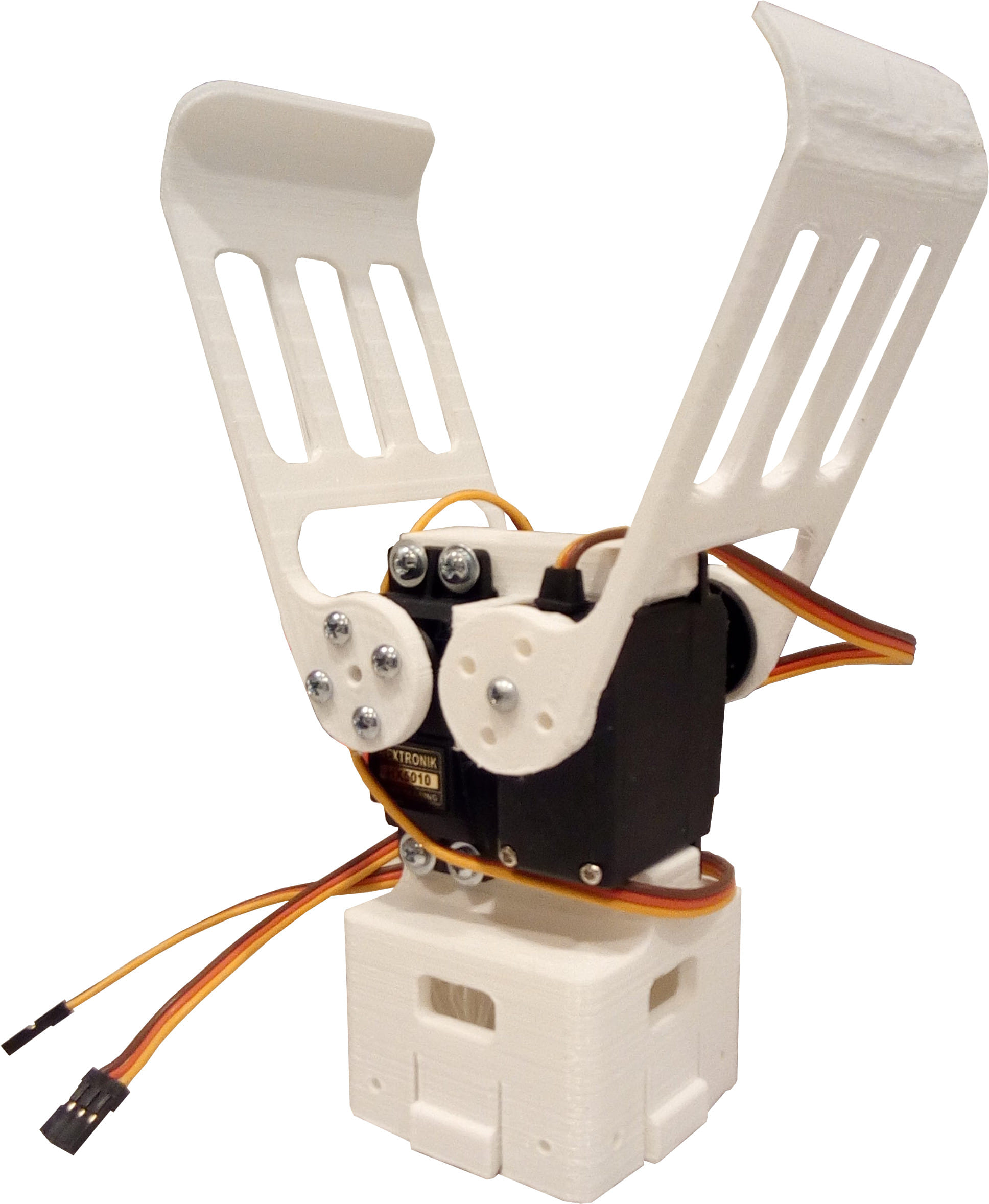

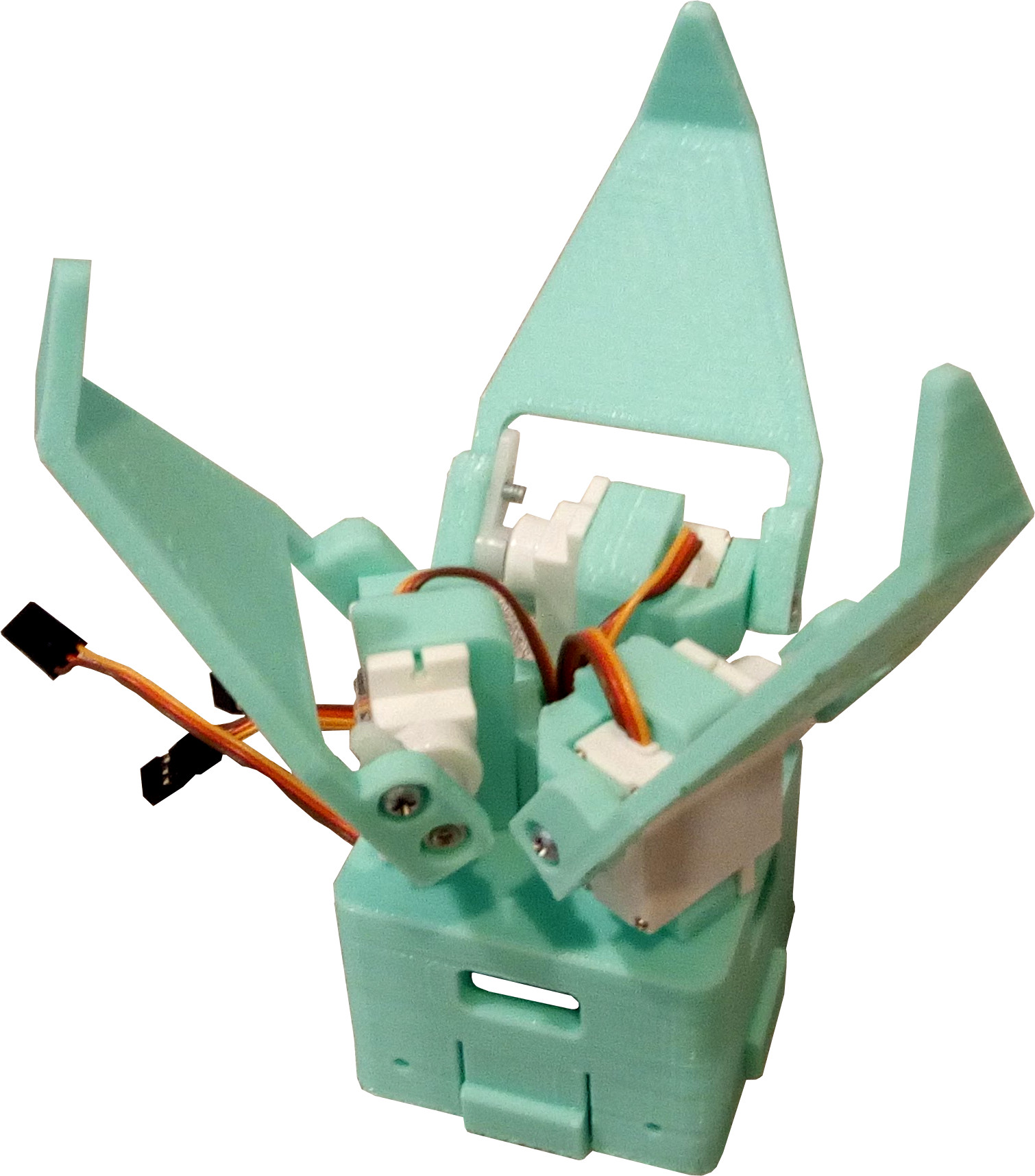

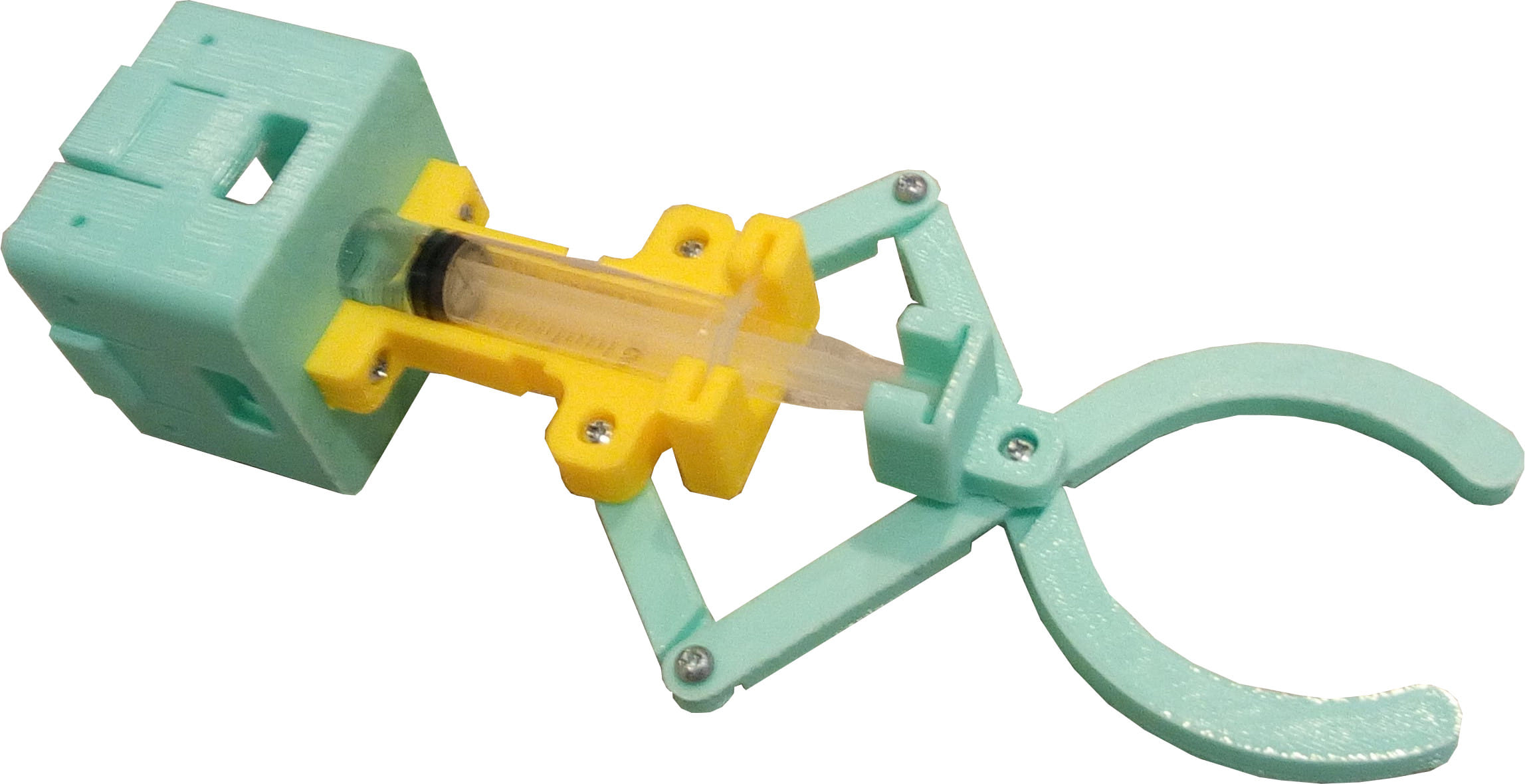

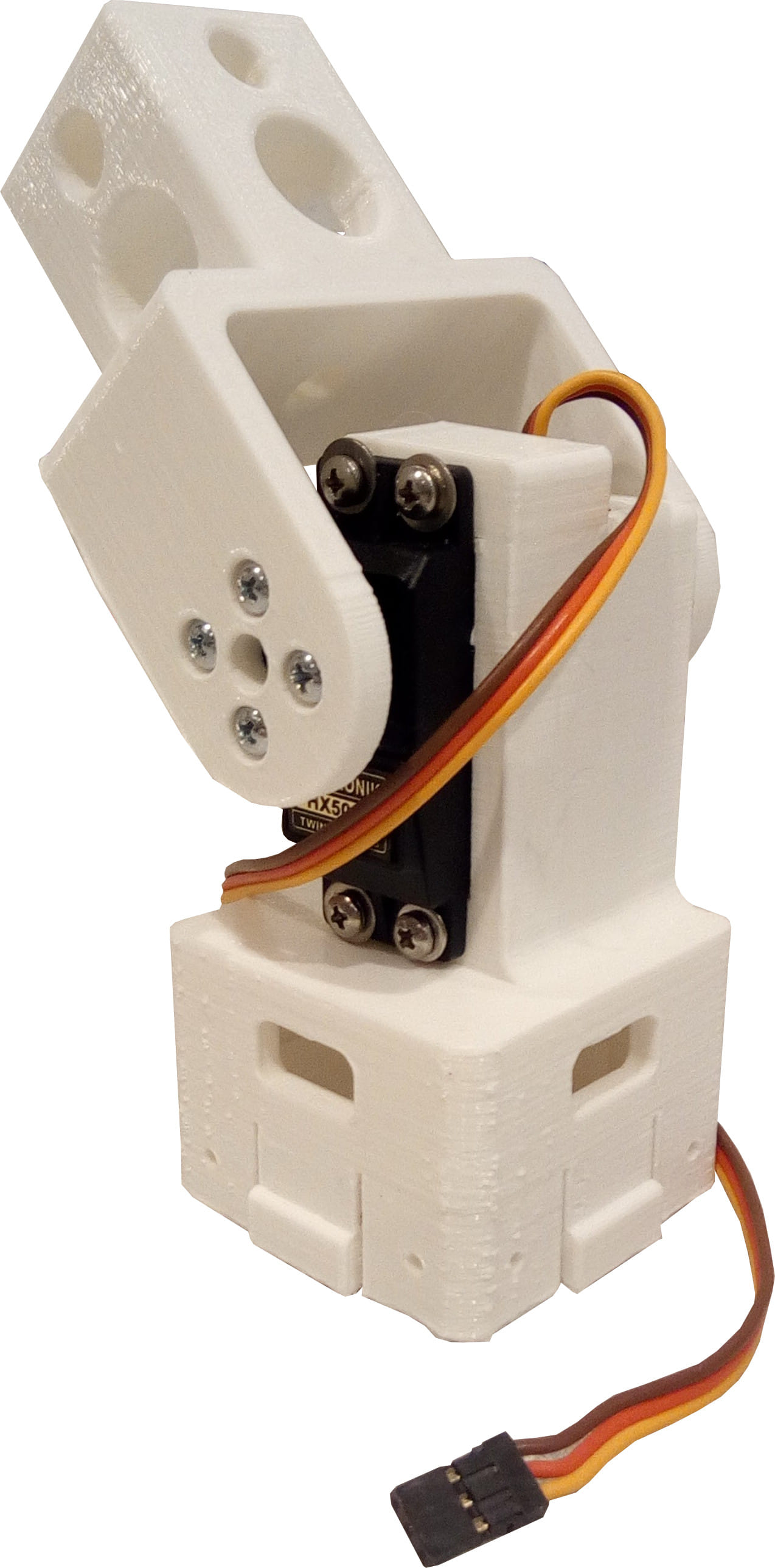

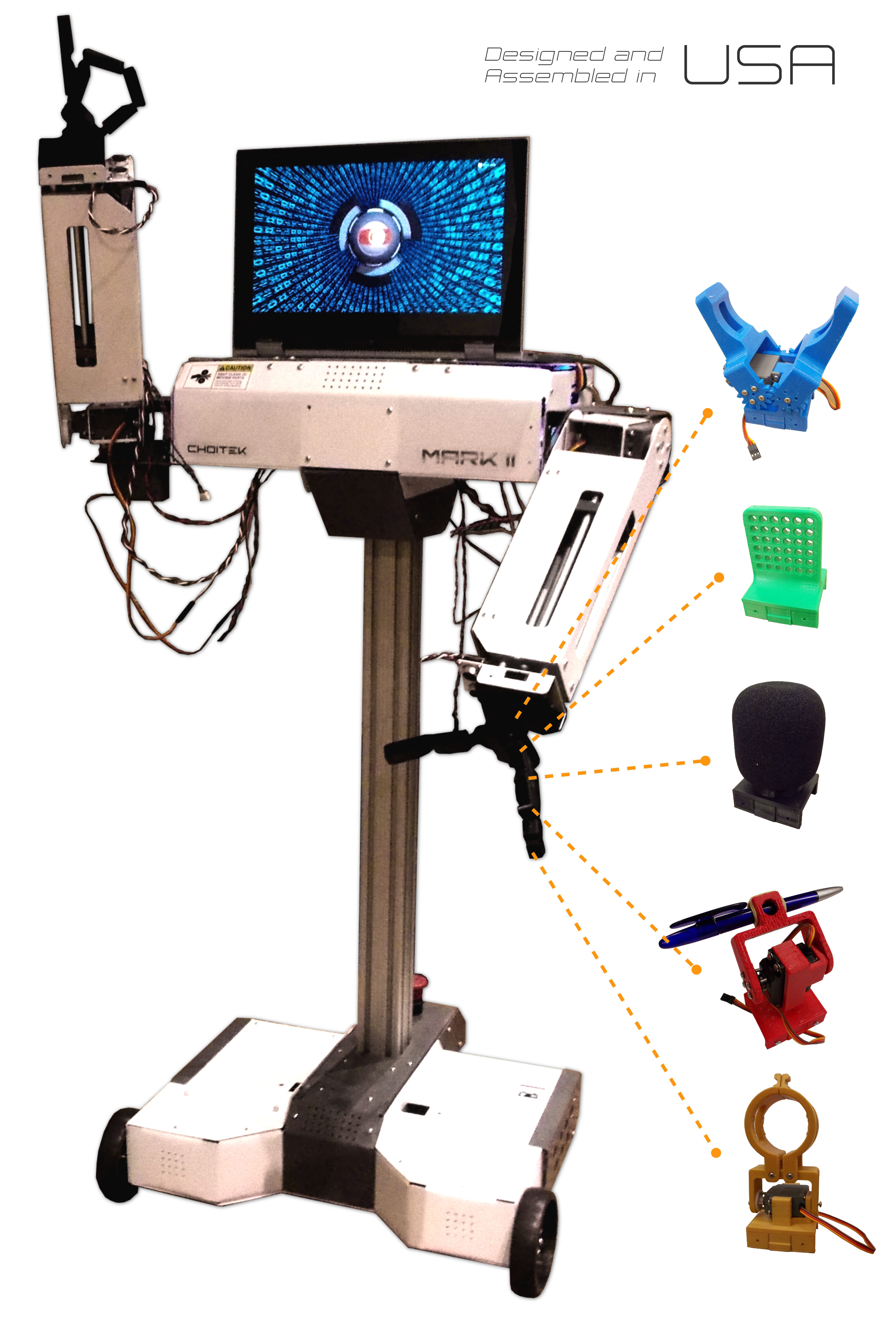

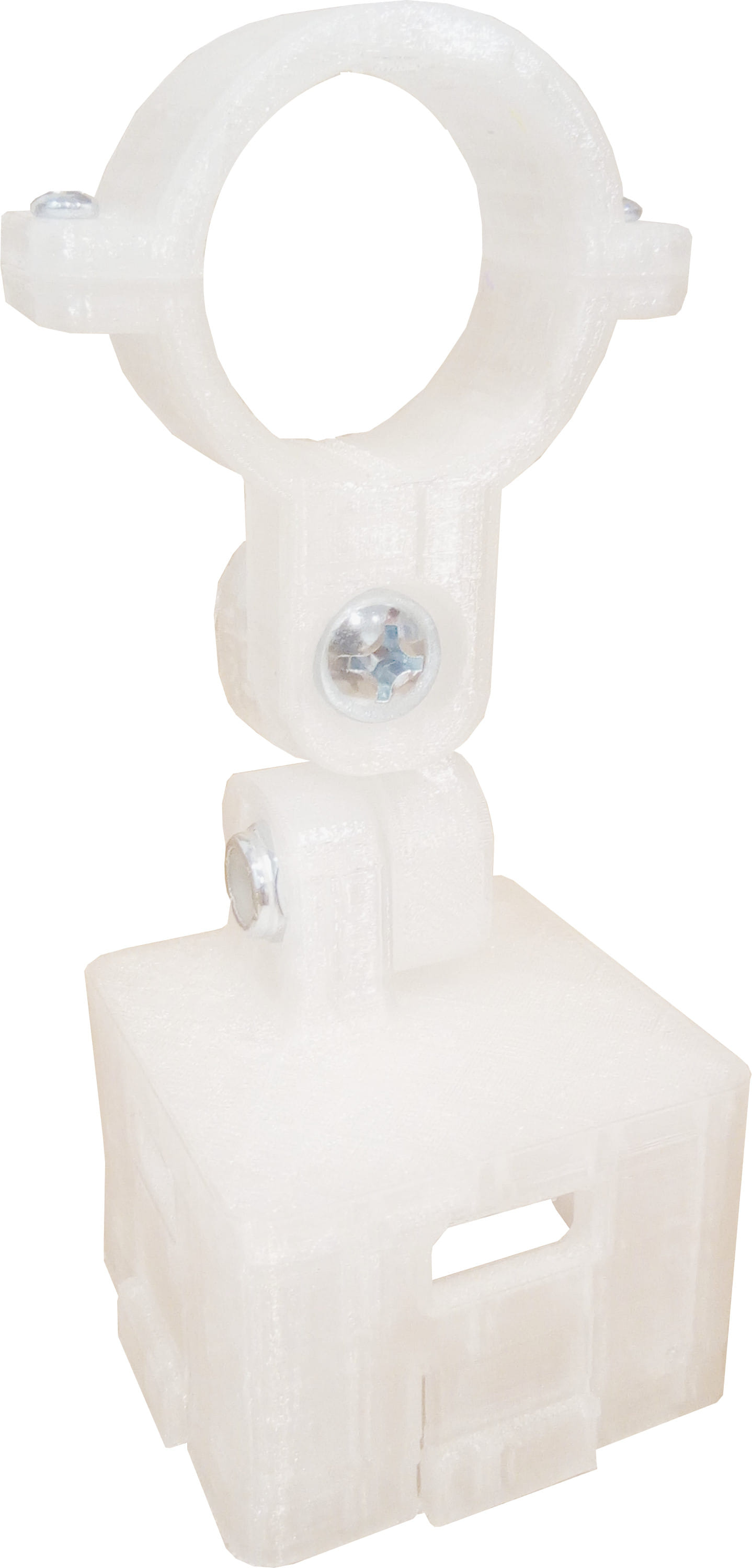

- Modular 3D-printed grippers — swap end effectors for different tasks (coffee delivery, plant watering, door opening, and more)
- Plenty of mounting holes — easily add custom sensors and electronics
- 0.5kg payload capacity per arm
Software & Compatibility
Works on Mac, Windows, Linux and ChromeOS. Programmable in:
- Python 2.7
- Arduino IDE
- Processing
- Unity
- RobotC
DIY Telepresence
The Megamark was extended with a telepresence app (built for the Agora IO Hackathon 2018) allowing remote piloting from anywhere in the world via internet connection. Features:
- Audiovisual streaming via Agora IO
- Keyboard-based remote motor control

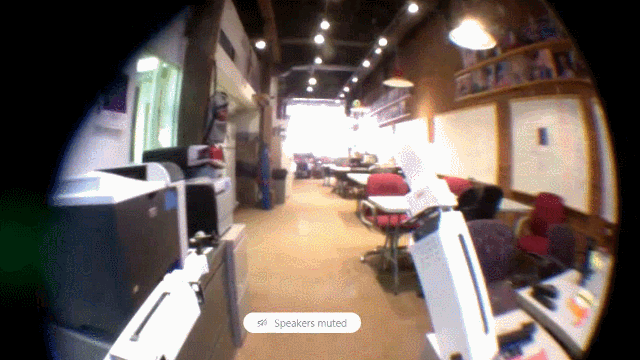

- Optional 180° fish-eye lens with 3D hemisphere rendering mode
- Single standalone Windows-friendly executable
Support & Recognition
Made possible with generous support from:
- Project Olympus — CMU entrepreneurship accelerator
- CMU Robotics Club
- NSF I-Corps CMU Branch
- CMU Undergraduate Research Office
- Frank-Ratchye STUDIO for Creative Inquiry
- Henry Armero Memorial Award for Inclusive Creativity
Licensed under CC-BY-SA 4.0.
